Trim Panel Replacement - Rear Seat Back

Trim Panel Replacement - Rear Seat Back

Removal Procedure

1. Fold the rear seat back down.

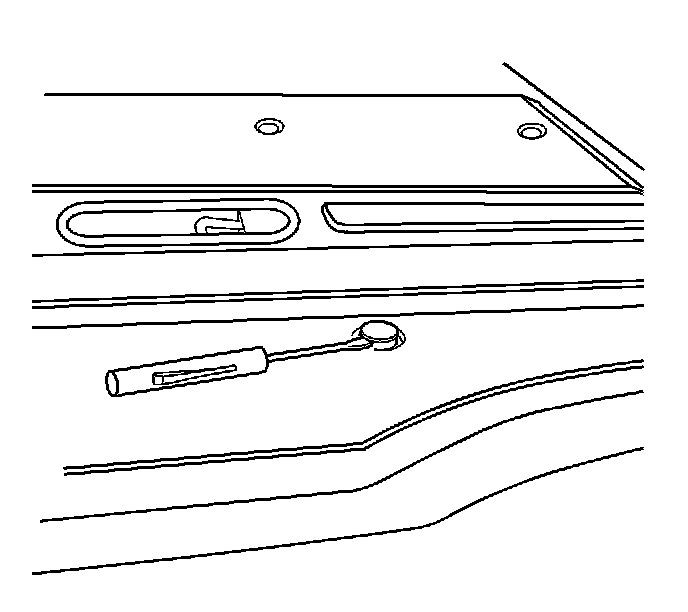

2. Using a flat-bladed tool remove the trim panel retainers.

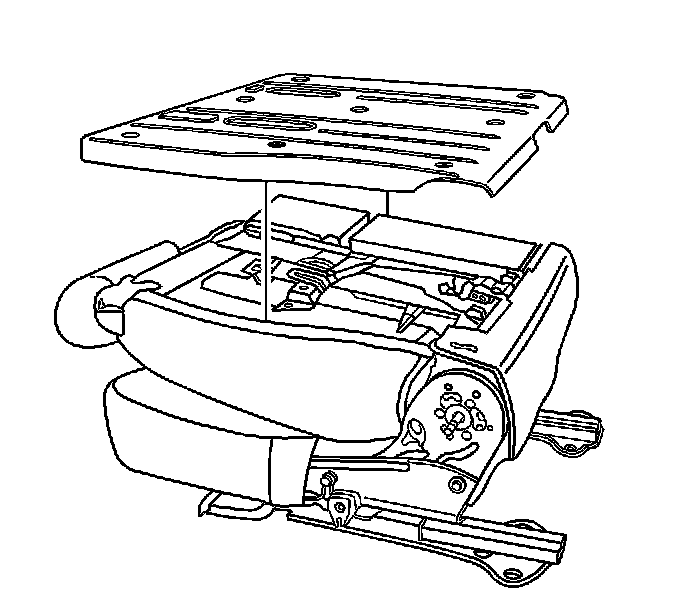

3. Remove the trim panel from the seat assembly.



Installation Procedure





1. Install the trim panel to the seat assembly.




2. Install the trim panel retainers.
3. Return the rear seat back to the upright position.
