Seat Cushion Inner Panel Replacement - Rear

Seat Cushion Inner Panel Replacement - Rear

Removal Procedure

1. Remove the seat from the vehicle. Refer to Rear Seat Replacement (40 Percent Side) Rear Seat Replacement (60 Percent Side) .
2. Remove the center seat belt buckles. Refer to Seat Belt Buckle Replacement - Center Rear (Extended Sedan) Seat Belt Buckle Replacement - Center Rear (Sedan) .

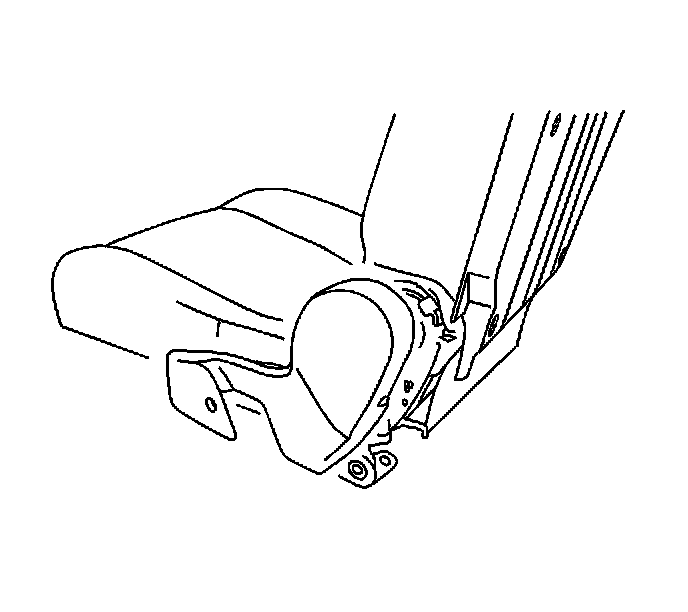

3. Remove the inner panel fasteners from the seat cushion.




4. Remove the inner panel by pulling straight off.



Installation Procedure





1. Install the seat cushion inner panel.
2. Install the inner panel fasteners to the seat cushion.
3. Install the center seat belt buckles. Refer to Seat Belt Buckle Replacement - Center Rear (Extended Sedan) Seat Belt Buckle Replacement - Center Rear (Sedan) .
4. Install the seat to the vehicle. Refer to Rear Seat Replacement (40 Percent Side) Rear Seat Replacement (60 Percent Side) .
