Seat Cushion Outer Trim Panel Replacement - Rear Seat

Seat Cushion Outer Trim Panel Replacement - Rear Seat

Removal Procedure

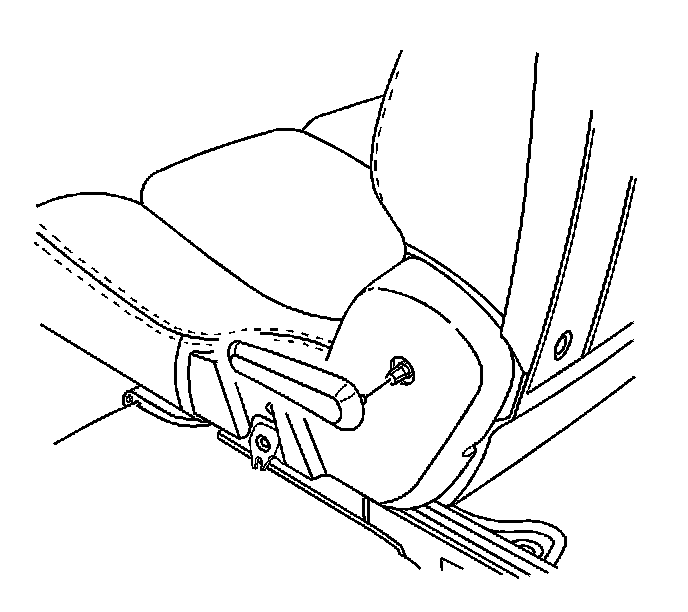

1. Remove the fold-flat handle by pulling straight off.

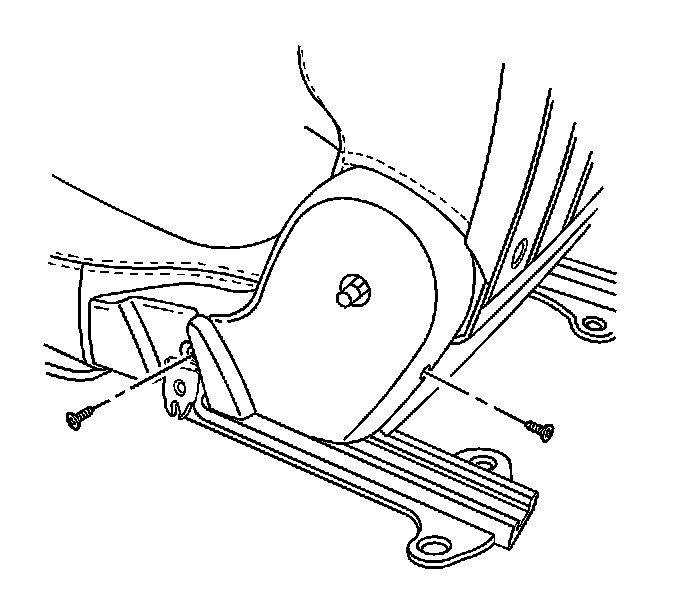

2. Remove the fasteners from the cushion outer trim panel.

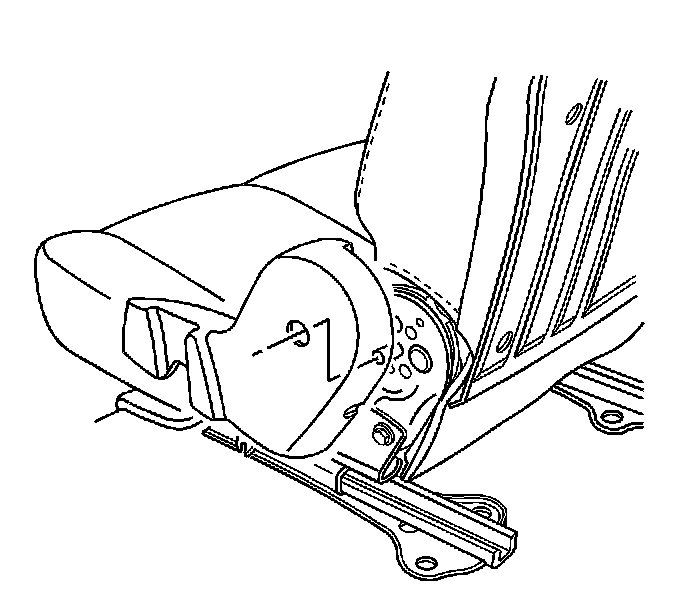

3. Remove the outer trim panel by pulling straight off.



Installation Procedure





1. Install the outer rim panel to the seat assembly.




2. Install the fasteners to the cushion outer trim panel.




3. Install the fold-flat handle by pushing straight on.
