Hydraulic Brake System Diagnosis



Hydraulic Brake System Diagnosis

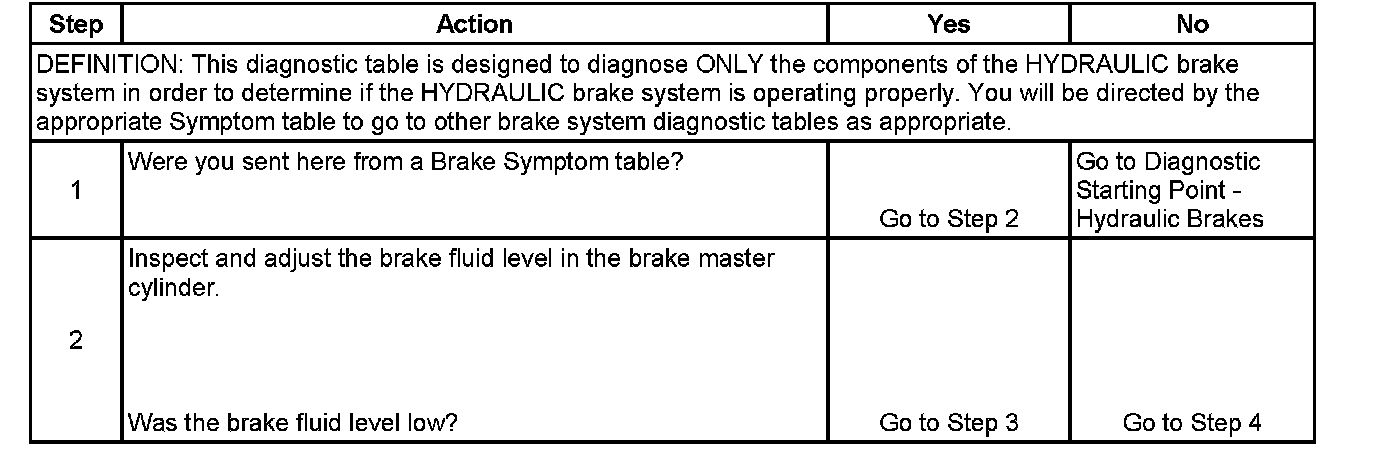

Step 1 - Step 2:

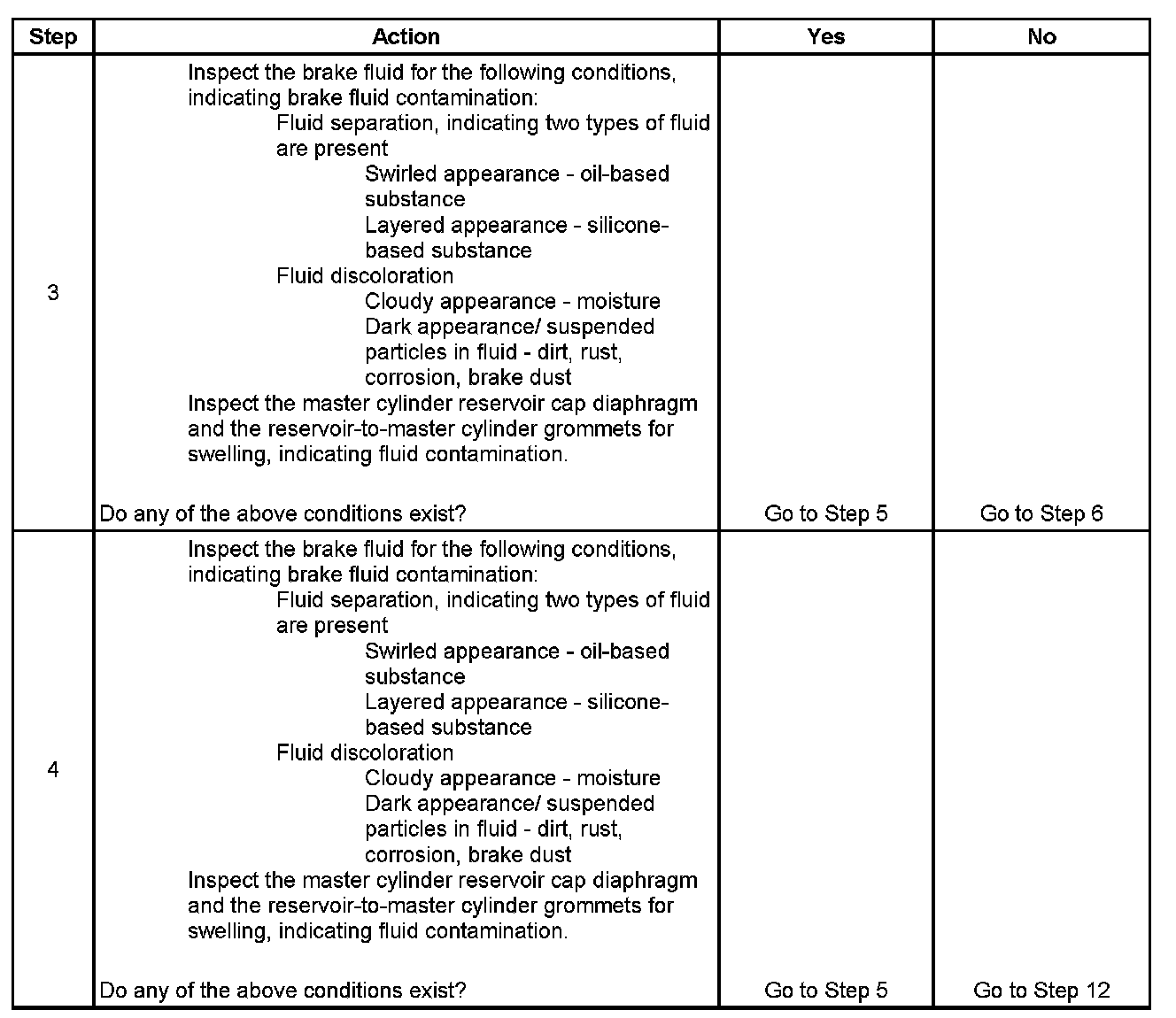

Step 3 - Step 4:

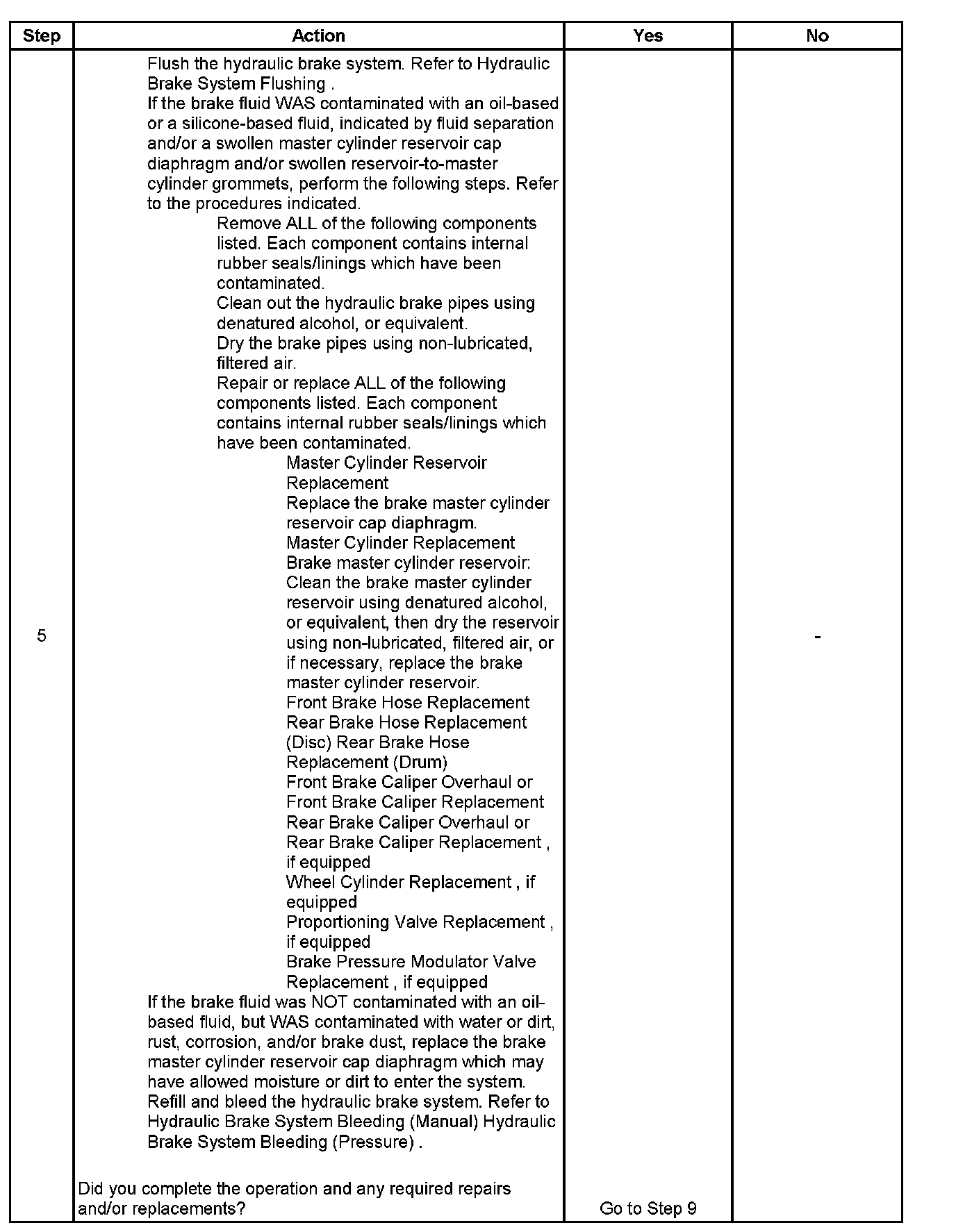

Step 5:




Step 6 - Step 14:

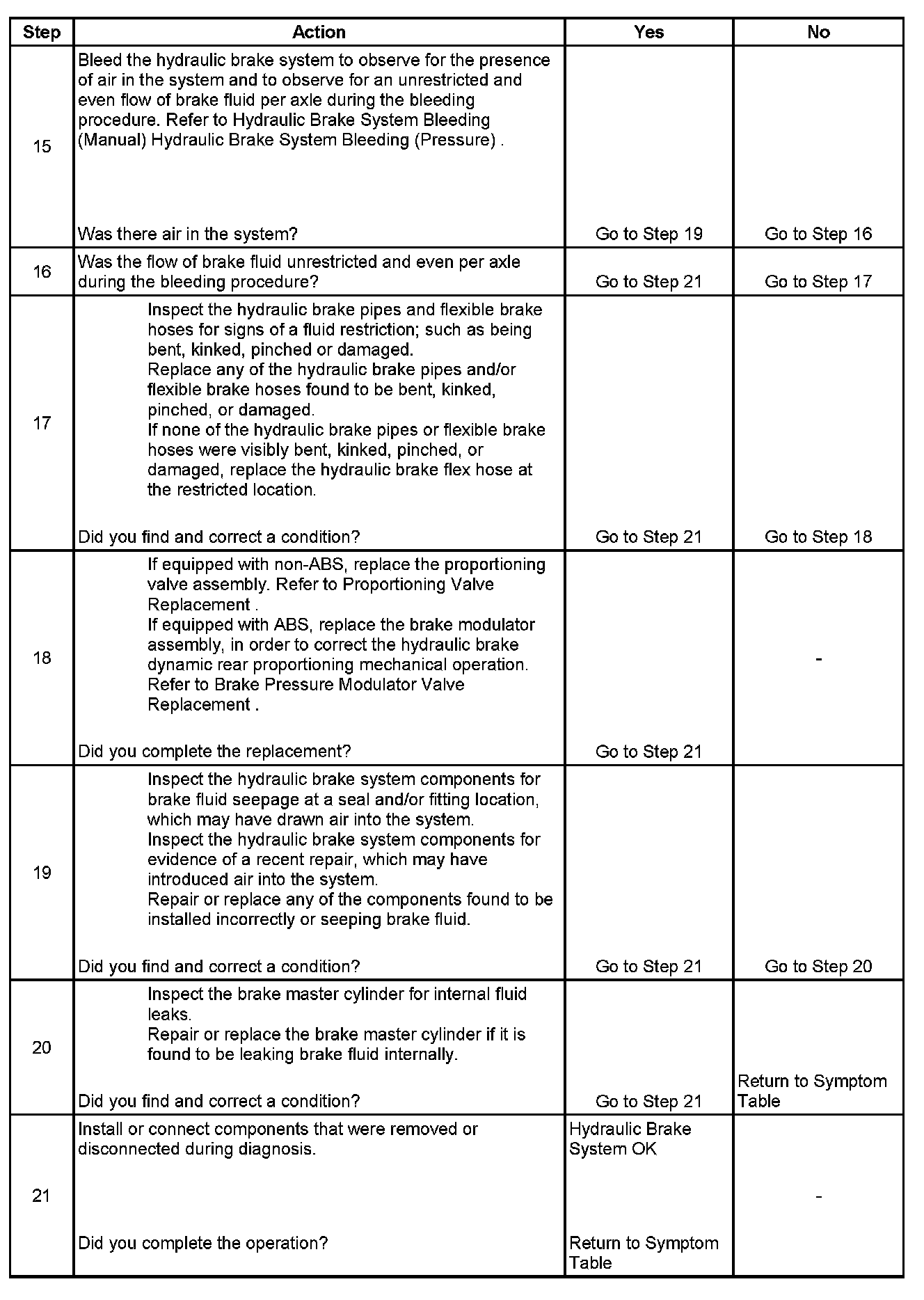

Step 15 - Step 21:
