Diesel Data: Automotive Repair

Park Brake System Diagnosis (Drum)



Park Brake System Diagnosis (Rear Drum Brakes)

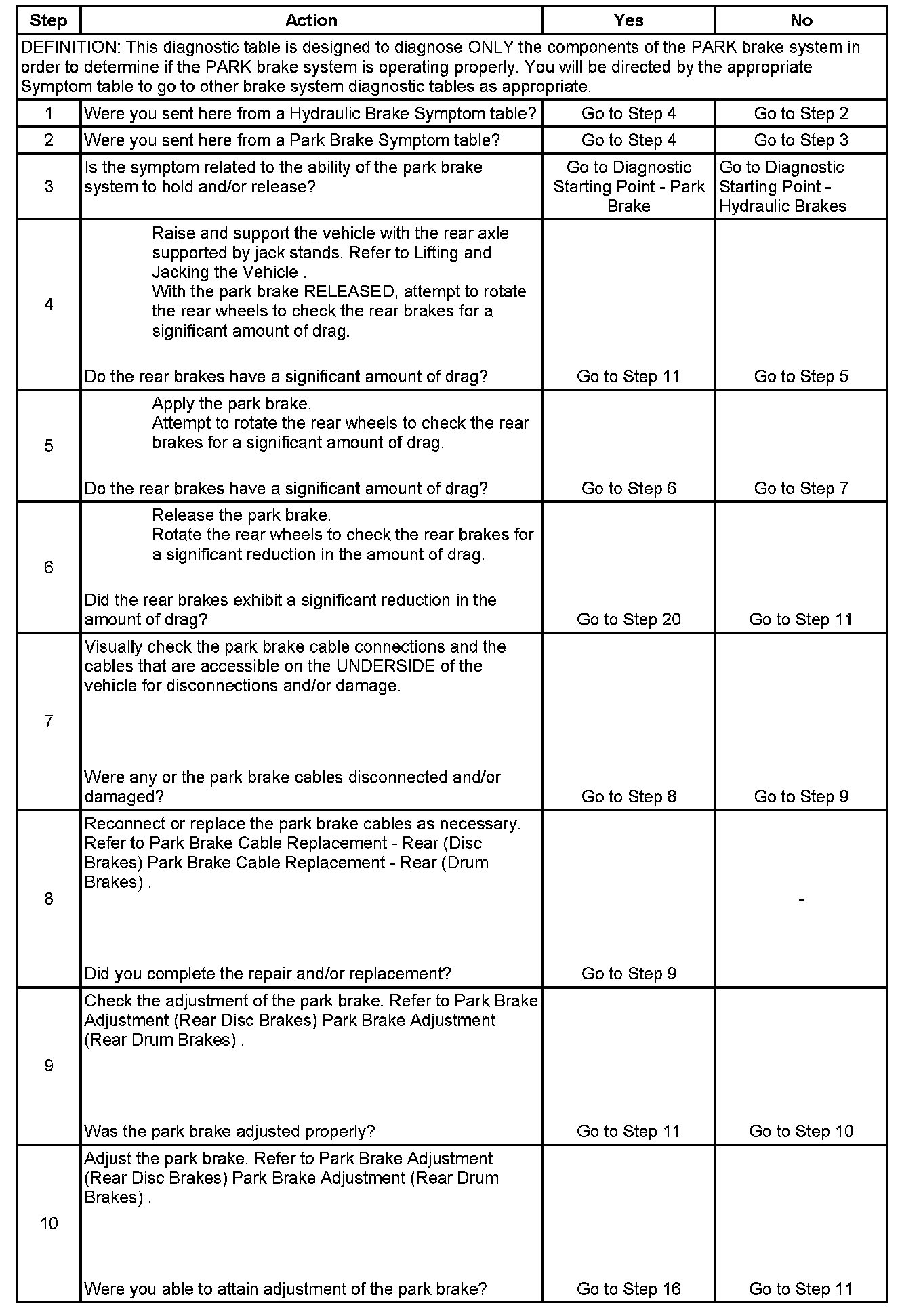

Step 1 - Step 10:

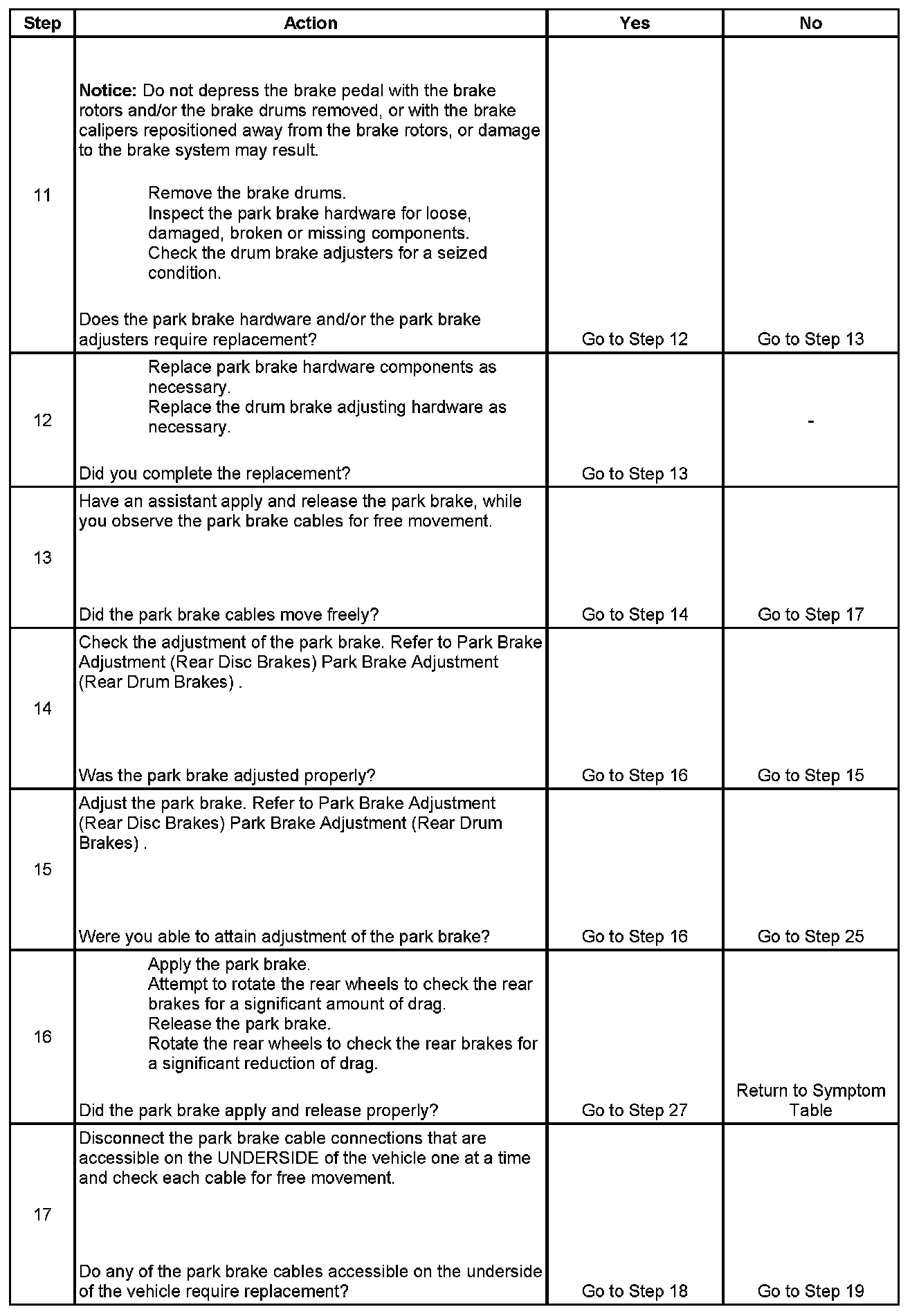

Step 11 - Step 17:

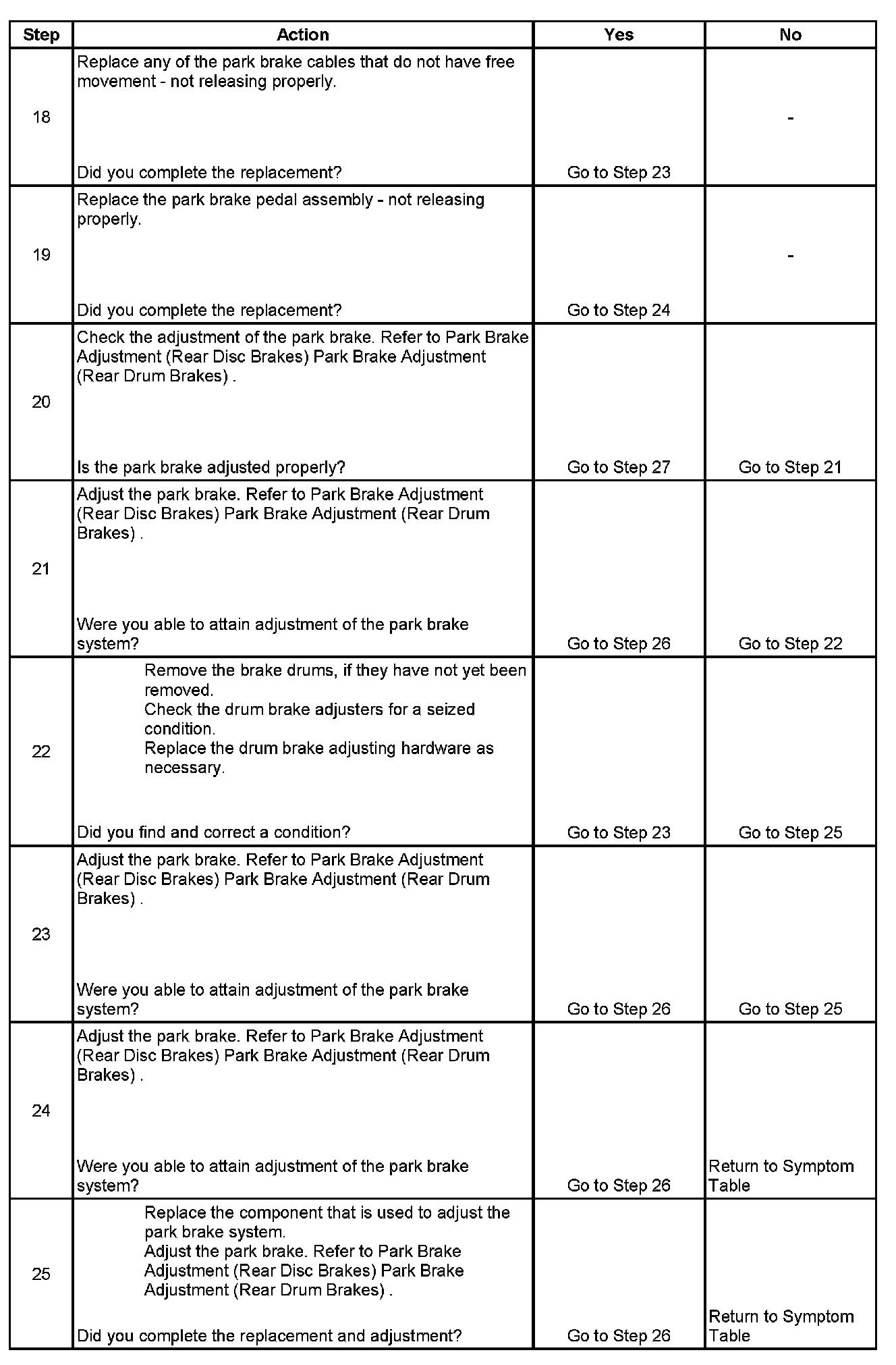

Step 18 - Step 25:

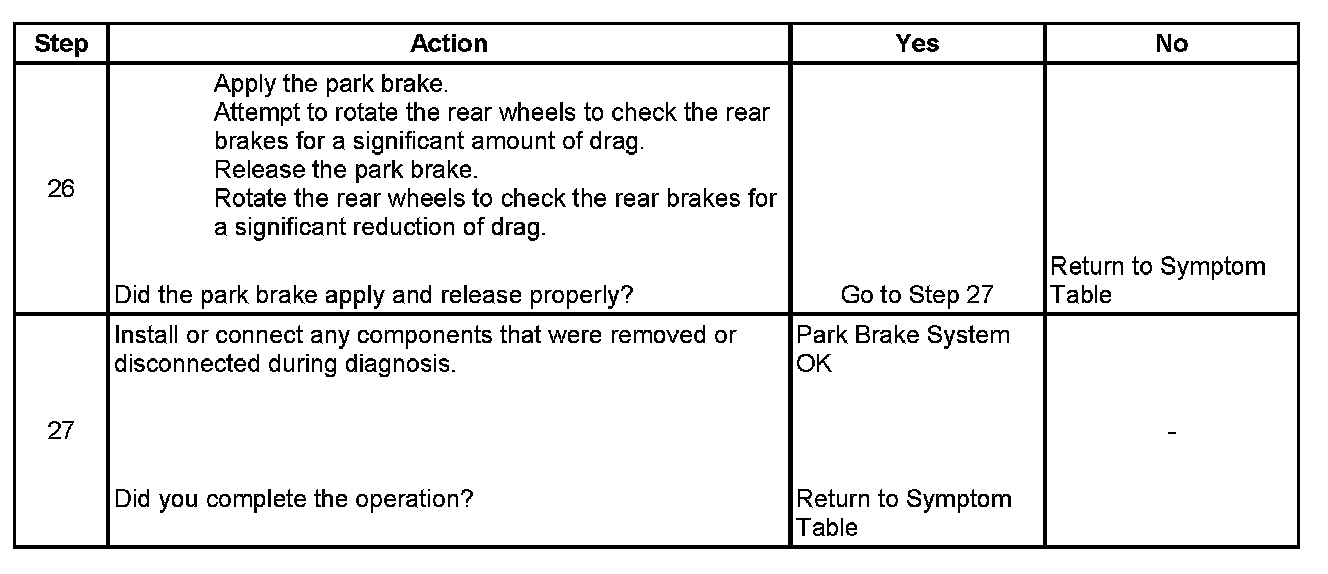

Step 26 - Step 27:
