Air Bag Systems
>>
Air Bag Control Module
Air Bag Control Module

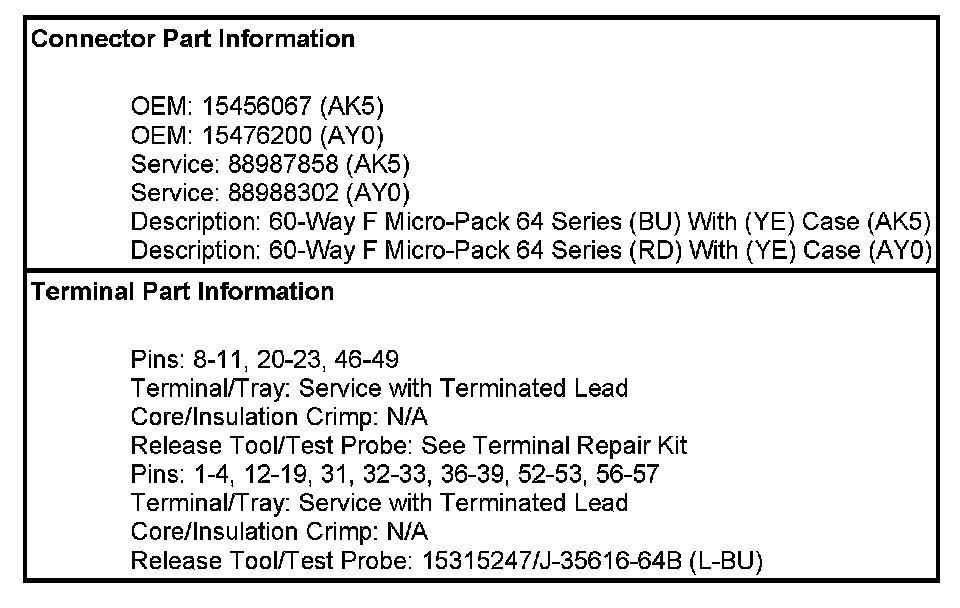

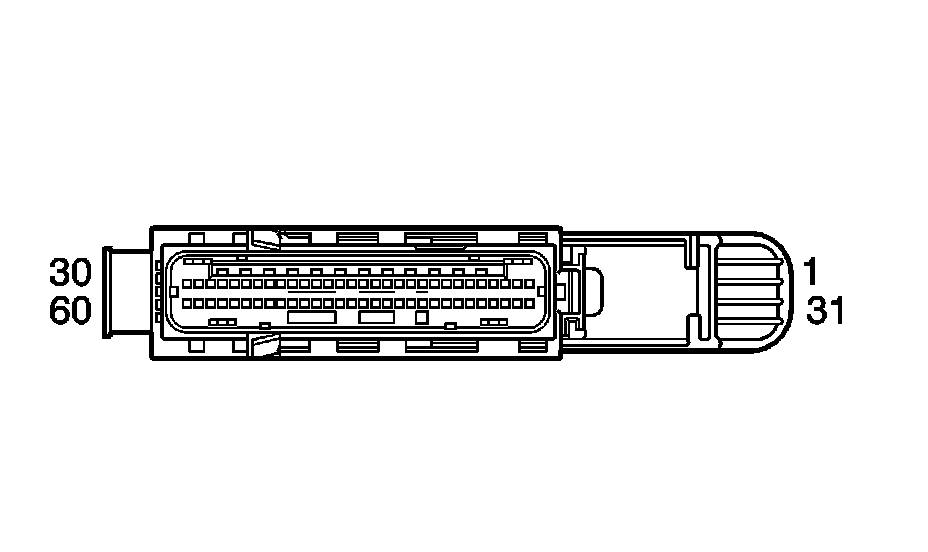

SIR Connector End Views

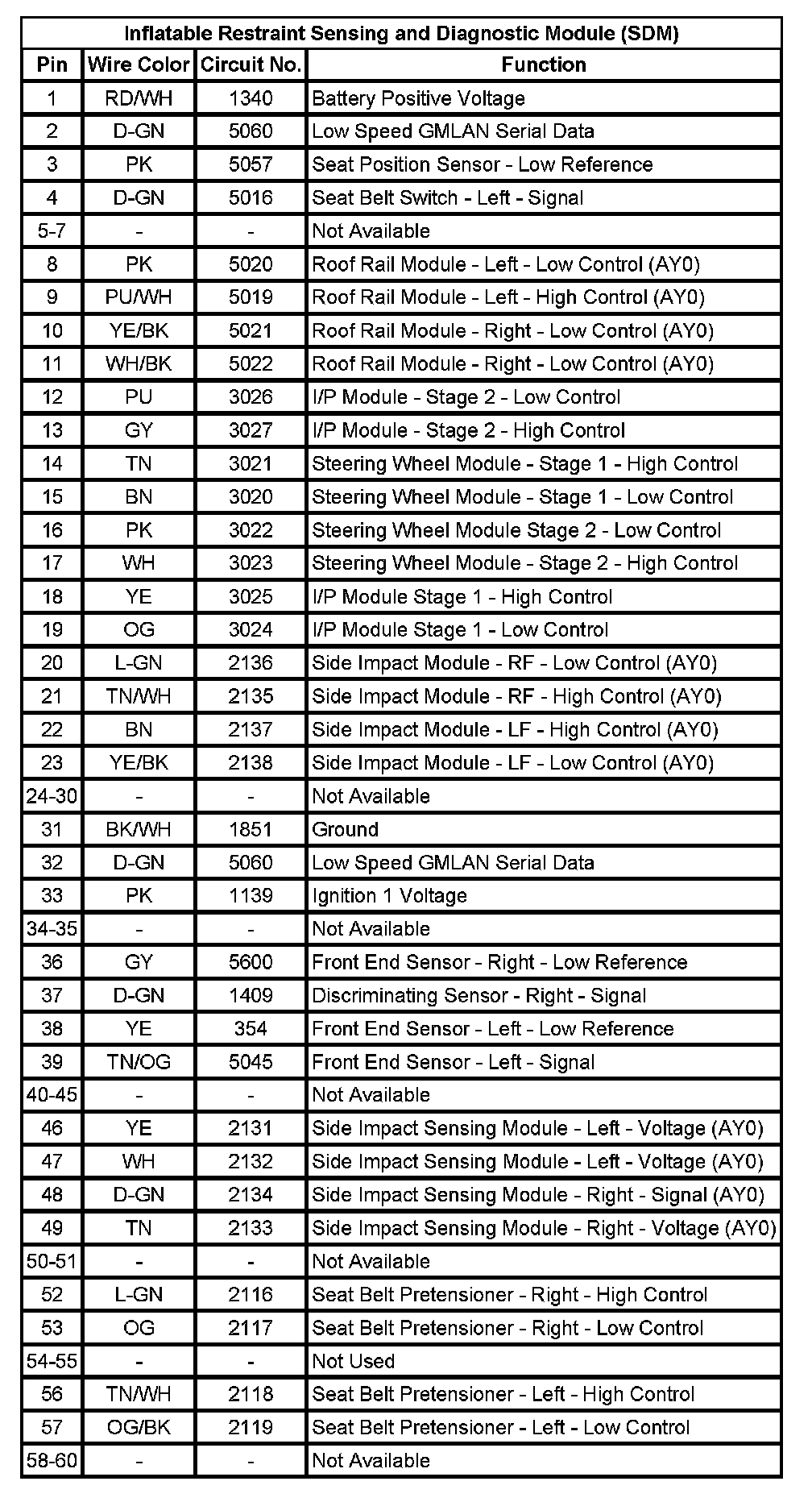

Inflatable Restraint Sensing and Diagnostic Module (SDM)
