Impact Sensor



SIR Connector End Views

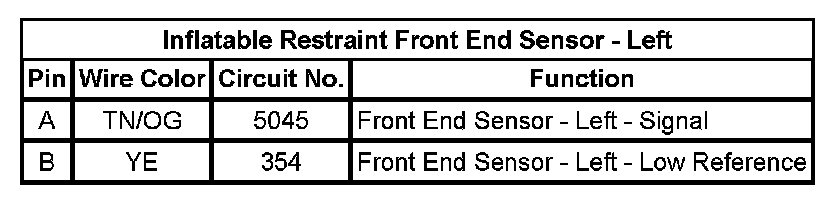

Inflatable Restraint Front End Sensor - Left

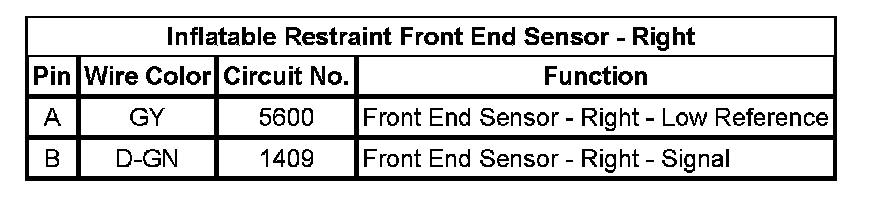

Inflatable Restraint Front End Sensor - Right

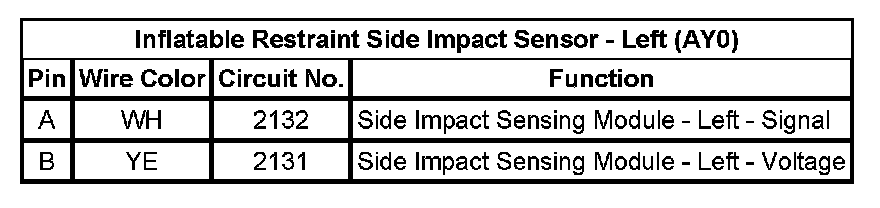

Inflatable Restraint Side Impact Sensor - Left (AY0)

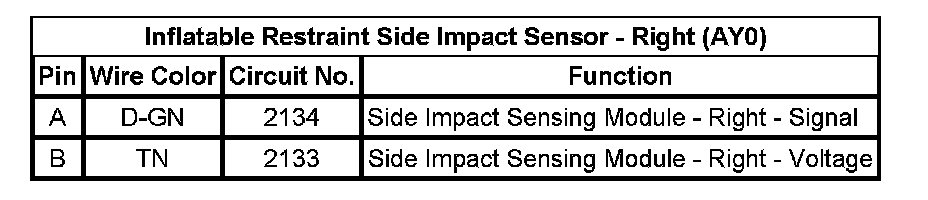

Inflatable Restraint Side Impact Sensor - Right (AY0)
