HVAC - Manual



HVAC Connector End Views

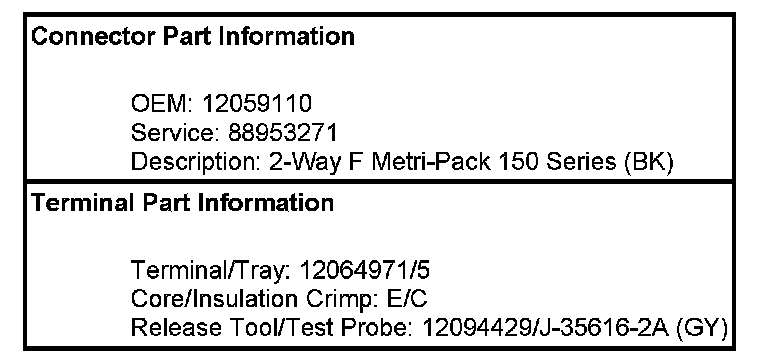

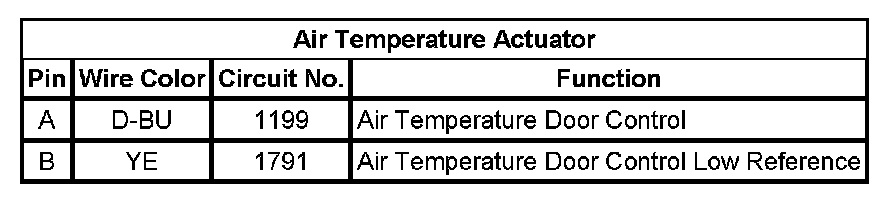

Air Temperature Actuator

Auxiliary Transmission Fluid Pump (M33 Only):

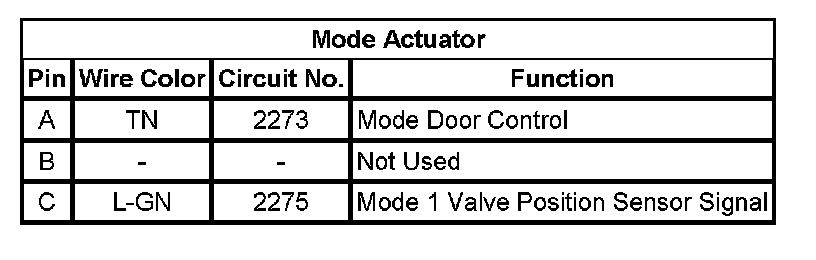

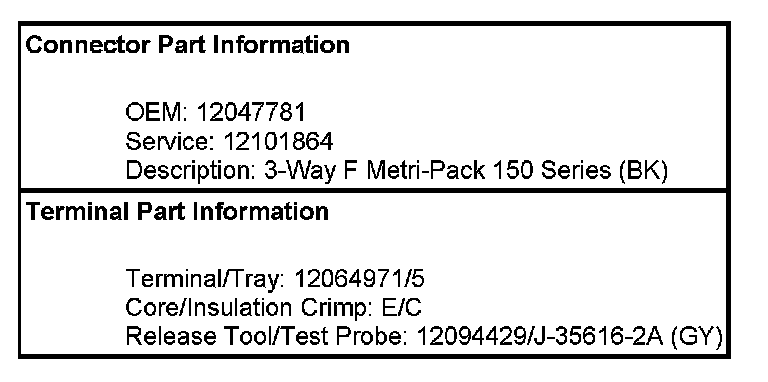

Mode Actuator

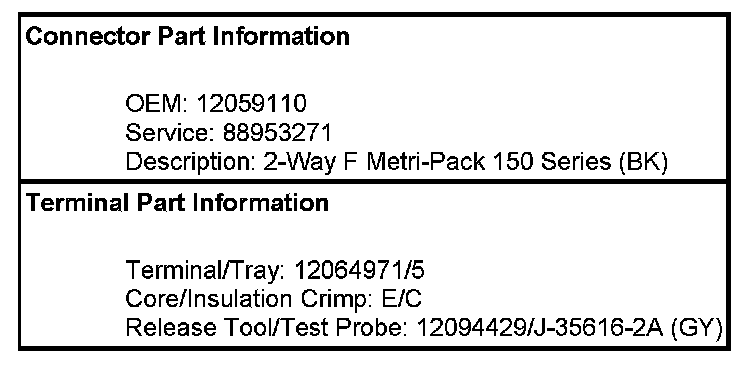

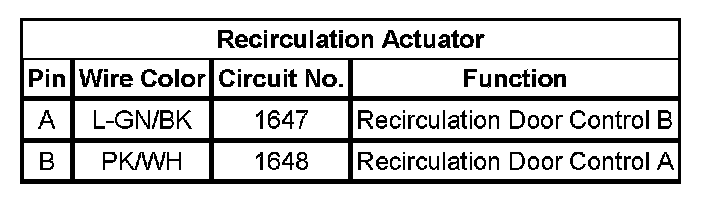

Recirculation Actuator

Auxiliary Transmission Fluid Pump (M33 Only):
