Automatic Transmission/Transaxle
>>
Pressure Regulating Solenoid, A/T
>>
4T45-E - Automatic Transaxle
4T45-E - Automatic Transaxle

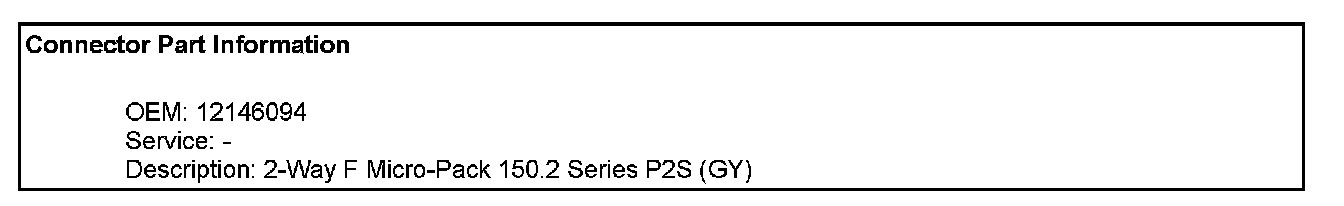

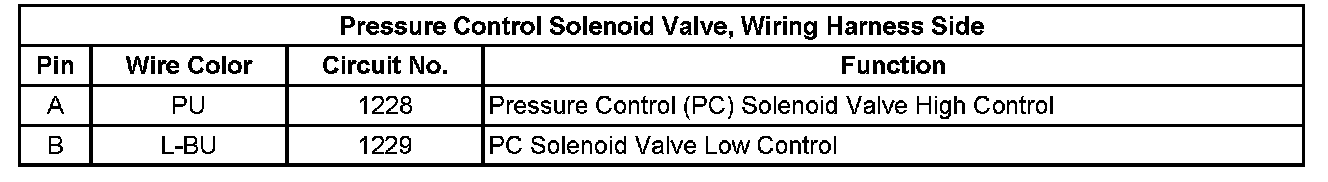

Pressure Control Solenoid Valve, Wiring Harness Side
Pressure Control Solenoid Valve, Wiring Harness Side:
