Transmission Mode Switch, A/T
Transmission Internal Mode Switch, Wiring Harness Side

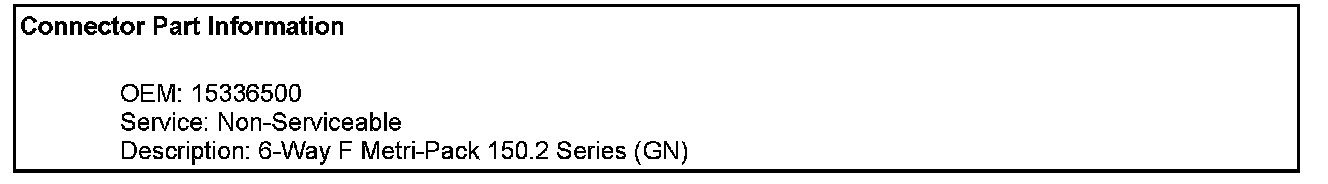

Internal Mode Switch (IMS):

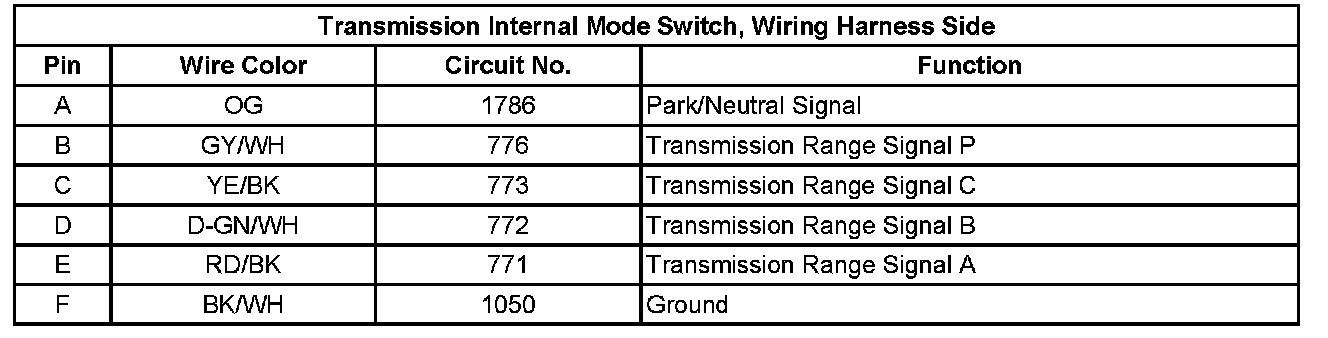

Transmission Internal Mode Switch, Wiring Harness Side:
