Canister Purge Solenoid

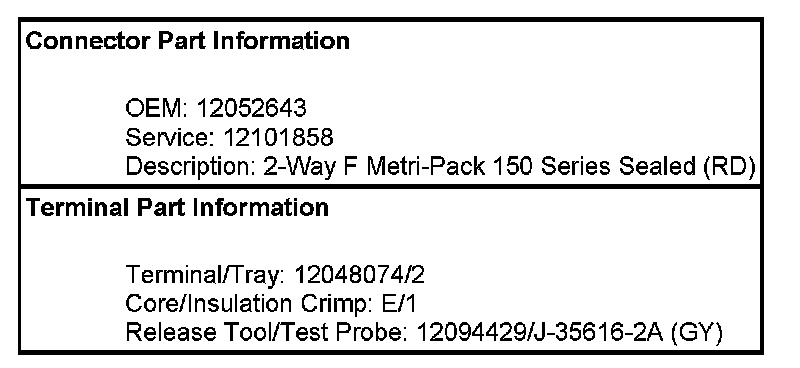

Engine Controls Connector End Views

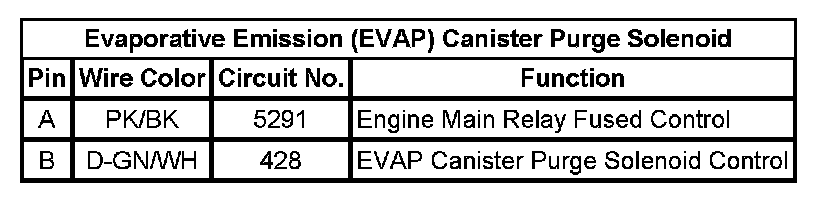

Evaporative Emission (EVAP) Canister Purge Solenoid
