Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

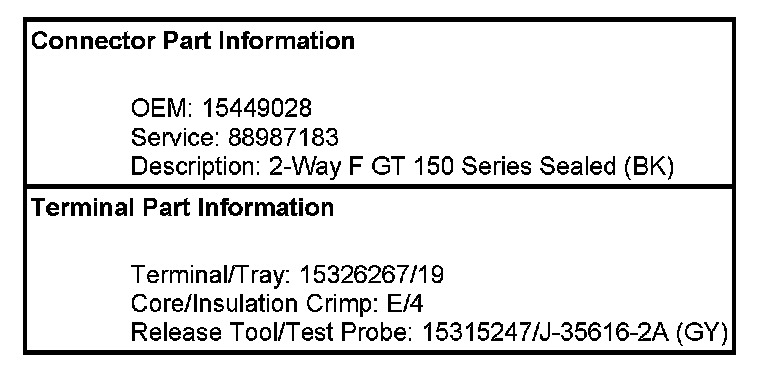

Engine Controls Connector End Views

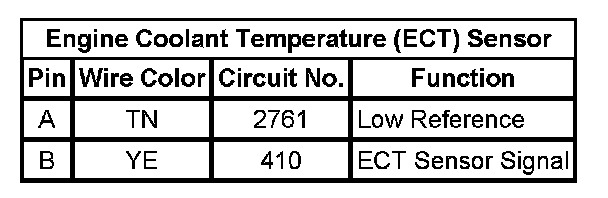

Engine Coolant Temperature (ECT) Sensor
