Cooling System



Cooling System Connector End Views

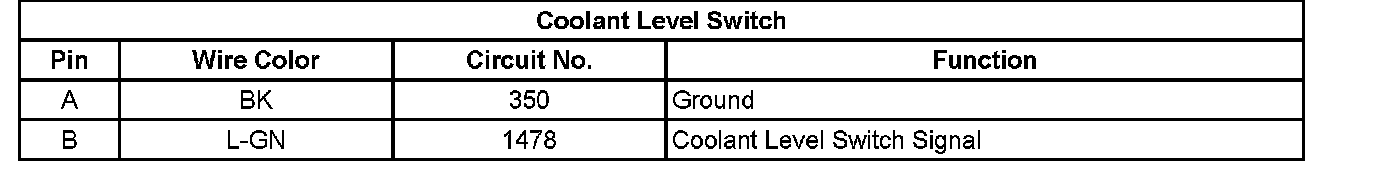

Coolant Level Switch







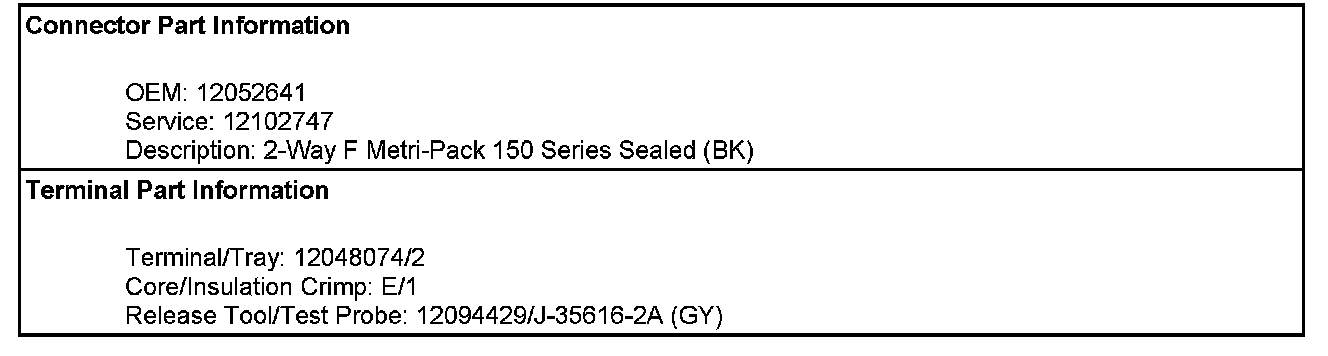

Coolant Level Switch:

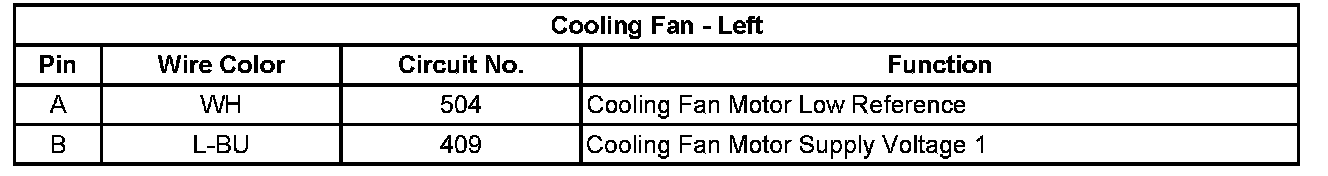

Cooling Fan - Left







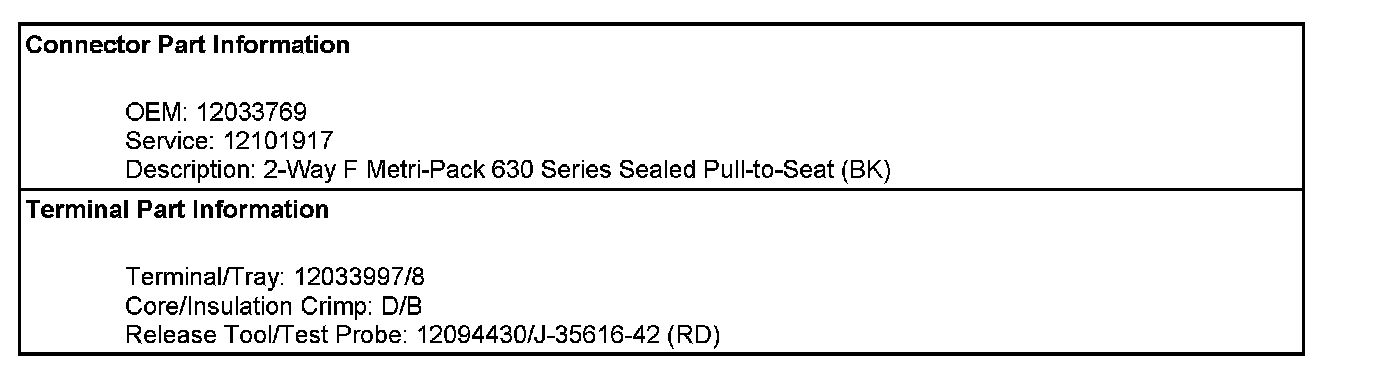

Cooling Fan - Left:

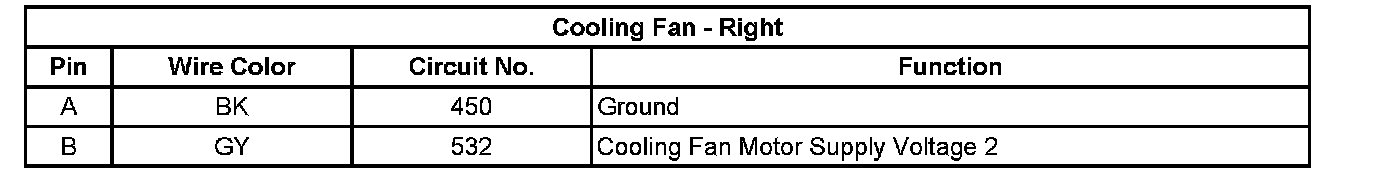

Cooling Fan - Right







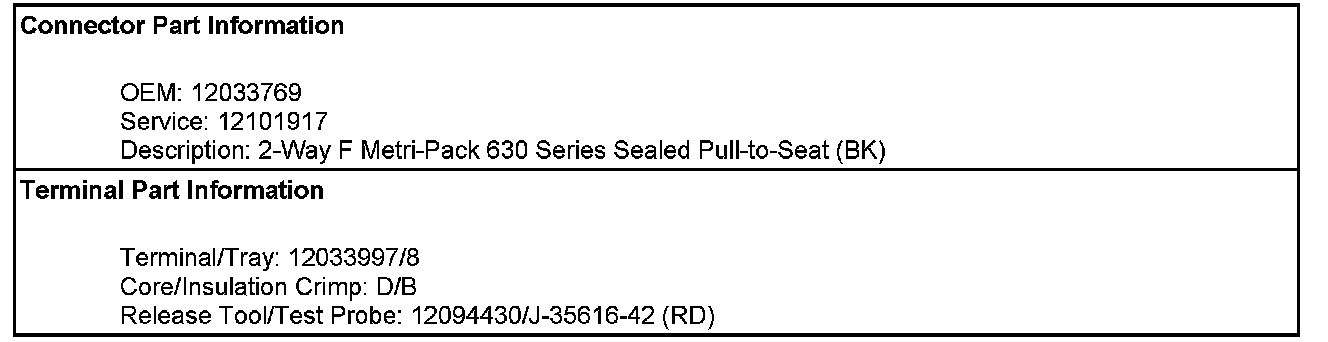

Cooling Fan - Right:
