Crankshaft Position Sensor
Crankshaft Position Sensor

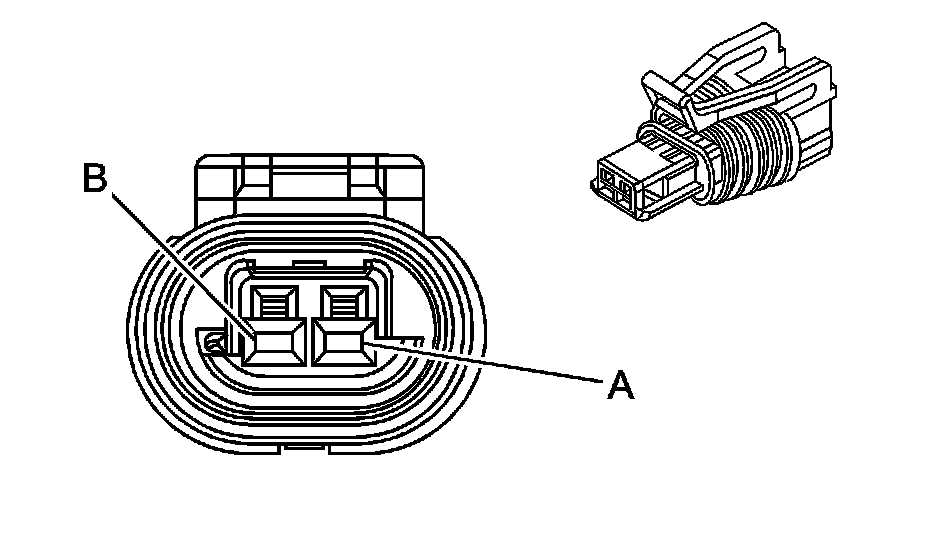

Engine Controls Connector End Views

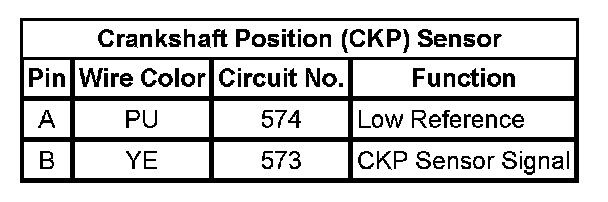

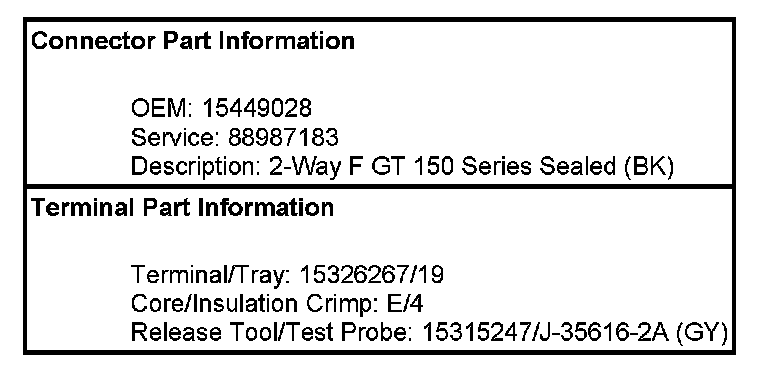

Crankshaft Position (CKP) Sensor
