Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control
Cruise Control
Cruise Control
Connector End Views

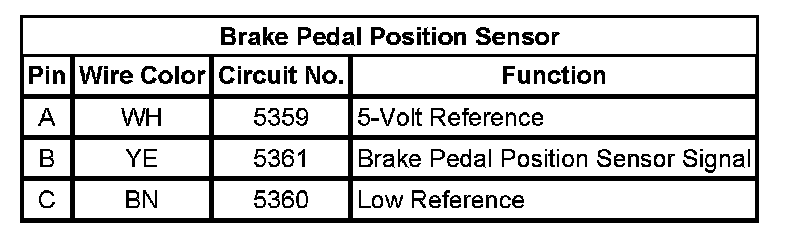

Brake Pedal Position Sensor

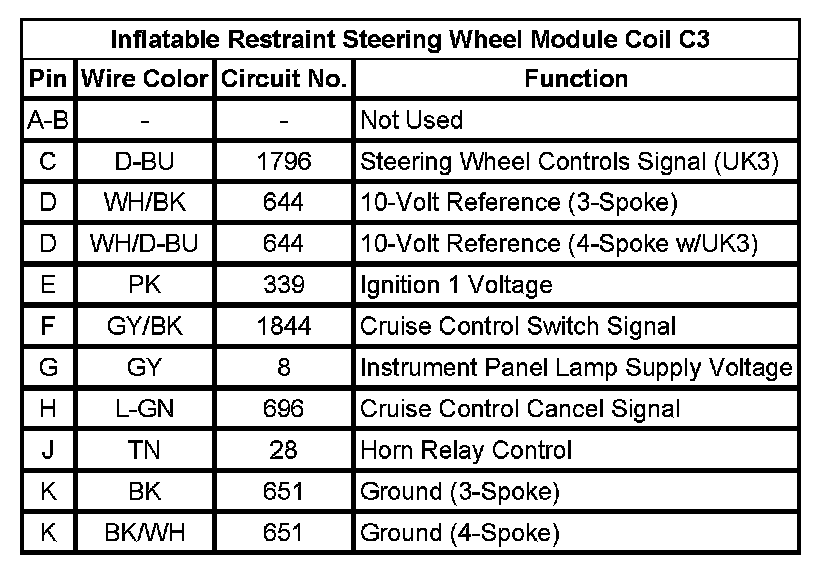

Inflatable Restraint Steering Wheel Module Coil C3
Steering Wheel Controls - Left (3-Spoke)
Steering Wheel Controls - Left:
Steering Wheel Controls - Left (4-Spoke)
