Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
>>
Fog/Driving Lamp Switch
Fog/Driving Lamp Switch
Lighting Systems Connector End Views

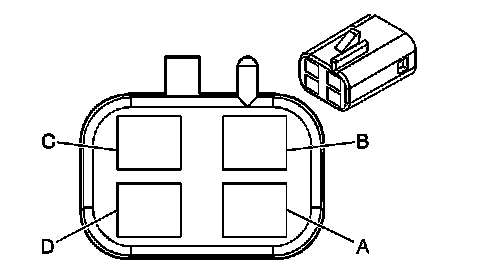

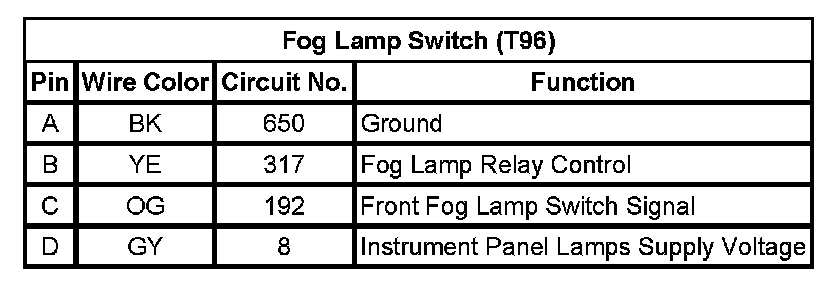

Fog Lamp Switch (T96)
