Vehicle Access Connector End Views



Vehicle Access Connector End Views

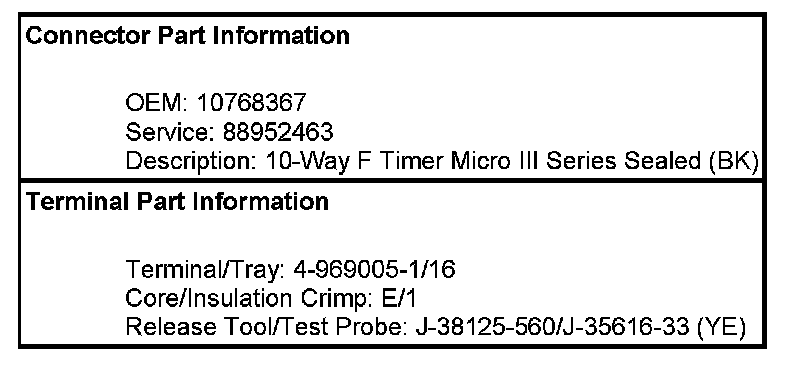

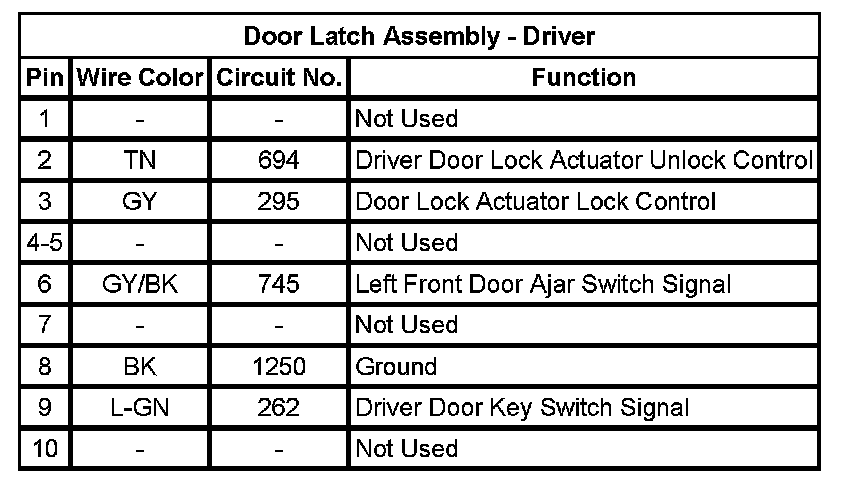

Door Latch Assembly - Driver

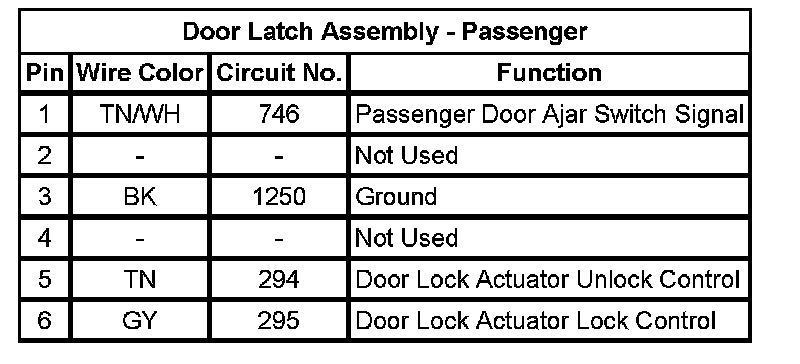

Door Latch Assembly - Passenger

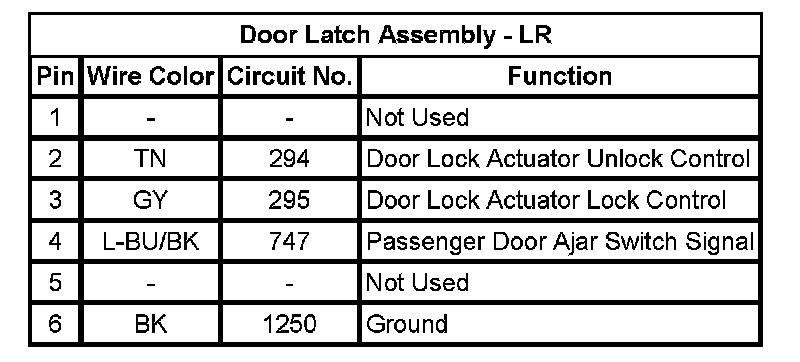

Door Latch Assembly - LR

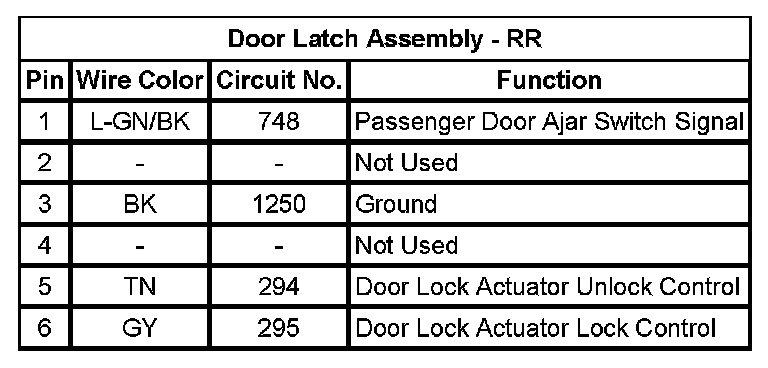

Door Latch Assembly - RR
