Fuel Injector

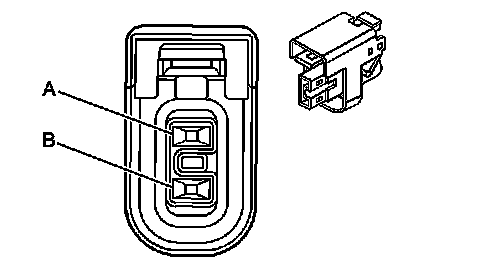

Engine Controls Connector End Views

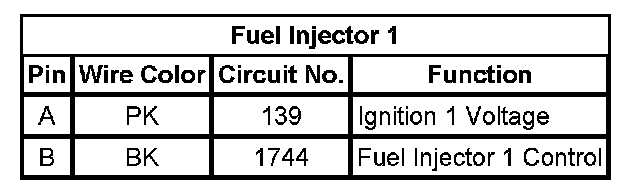

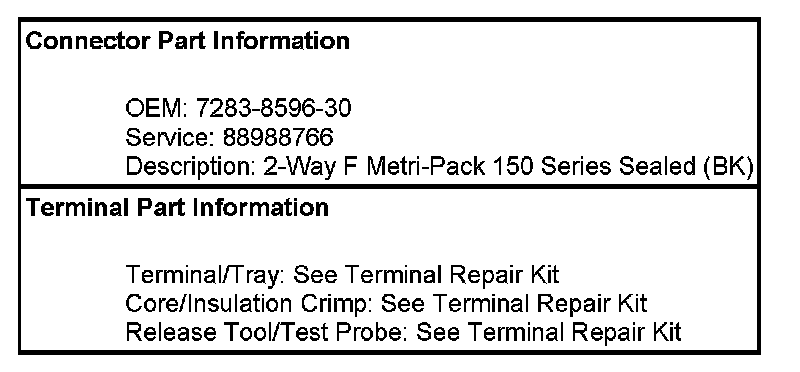

Fuel Injector 1

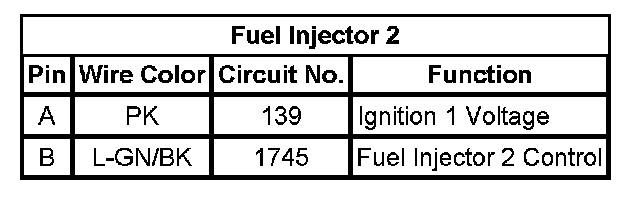

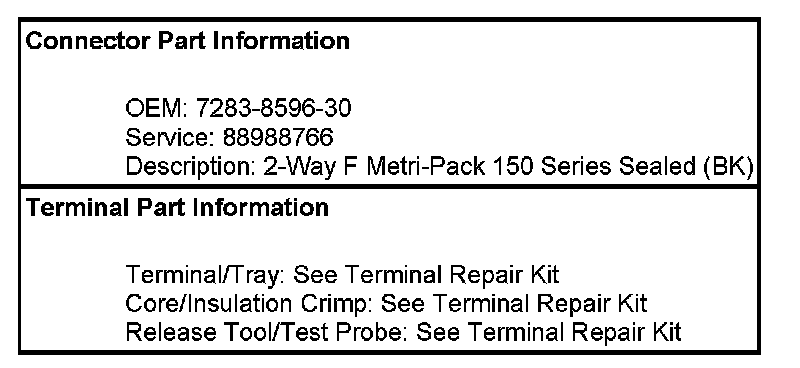

Fuel Injector 2

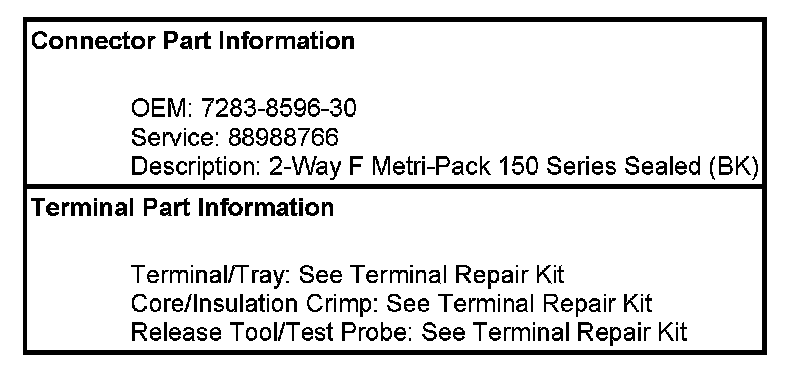

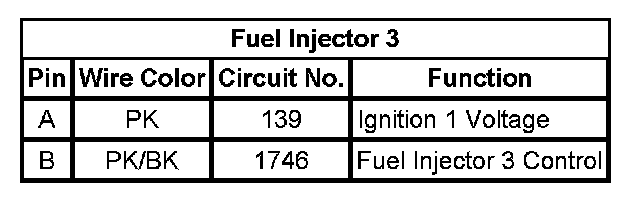

Fuel Injector 3

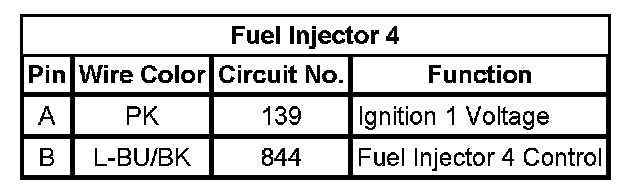

Fuel Injector 4
