Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hazard Warning Switch
Hazard Warning Switch

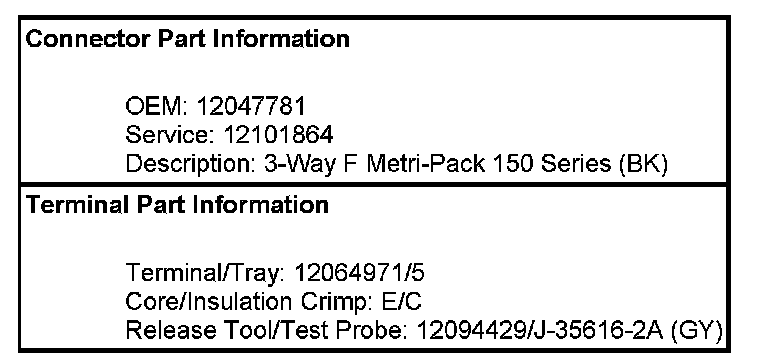

Lighting Systems Connector End Views

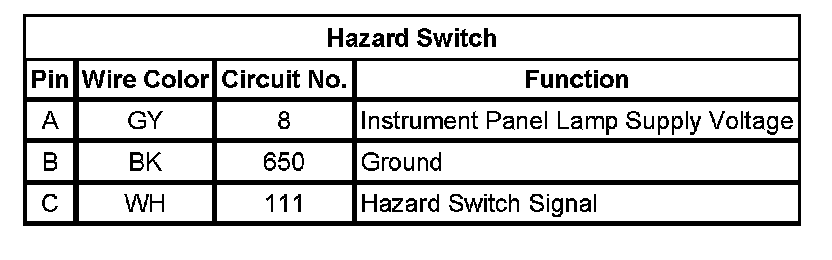

Hazard Switch
