Displays and Gages Connector End Views

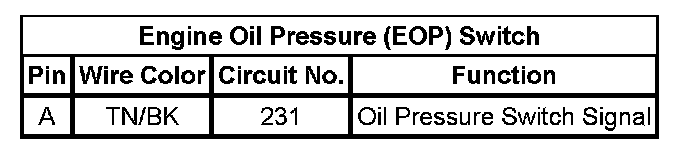

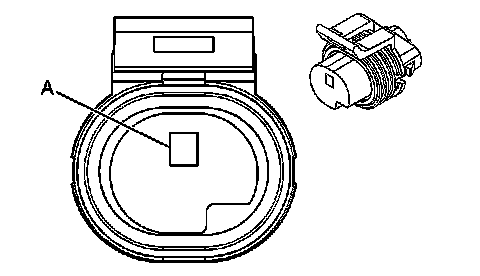

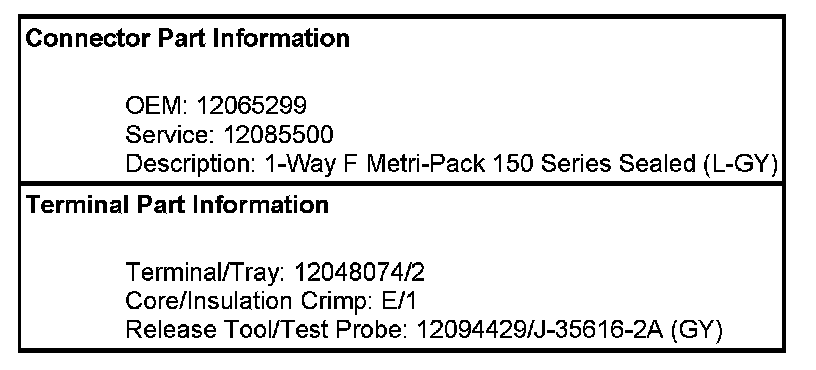

Engine Oil Pressure (EOP) Switch

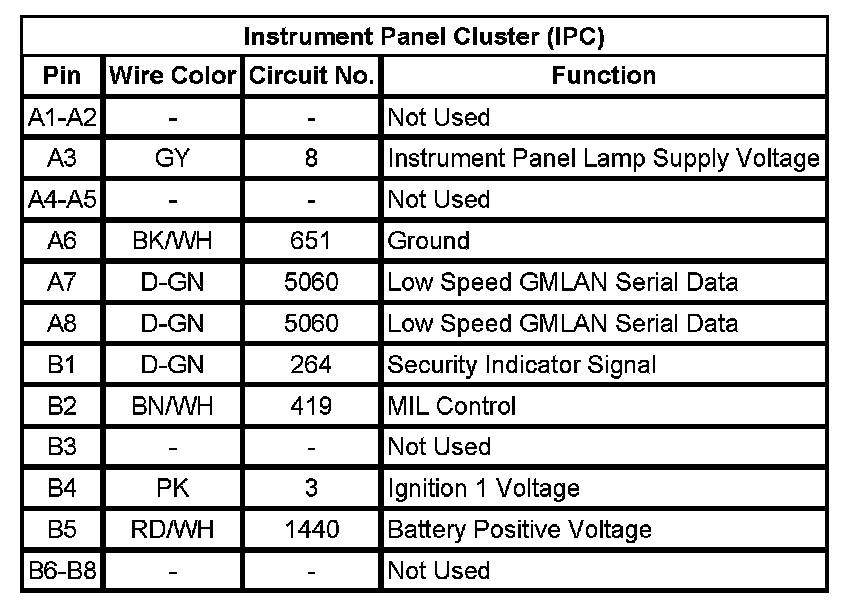

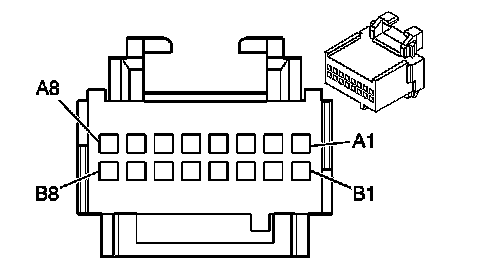

Instrument Panel Cluster (IPC)
