Manifold Pressure/Vacuum Sensor
Manifold Pressure/Vacuum Sensor

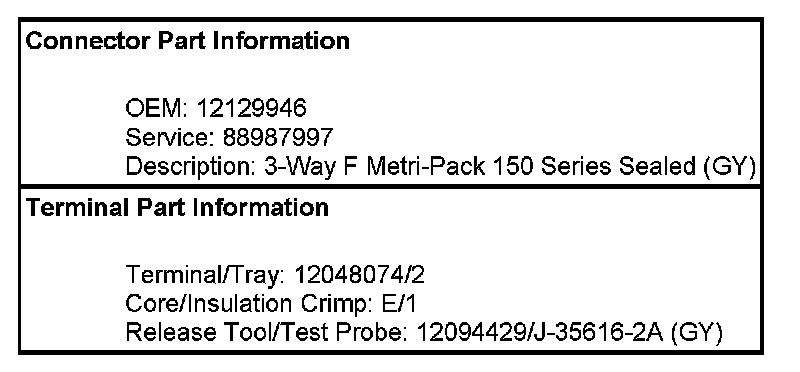

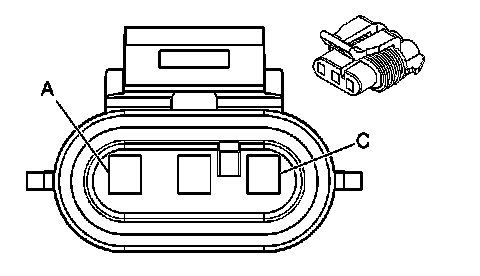

Engine Controls Connector End Views

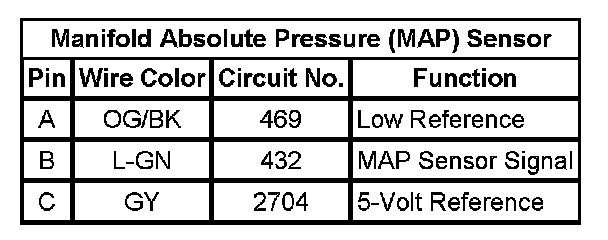

Manifold Absolute Pressure (MAP) Sensor
