Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
>>
Vehicle Access Connector End Views
Vehicle Access Connector End Views
Vehicle Access Connector End Views

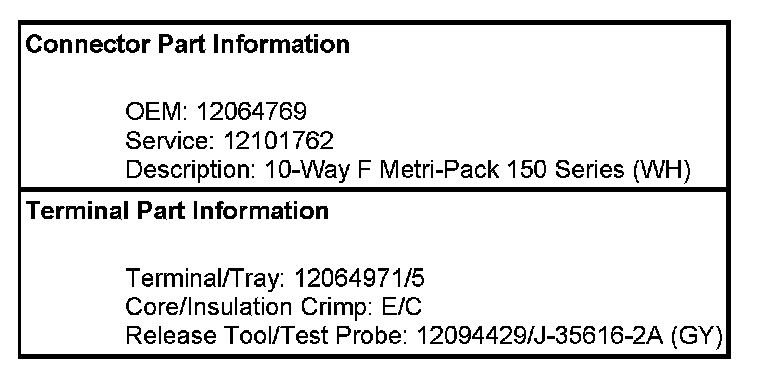

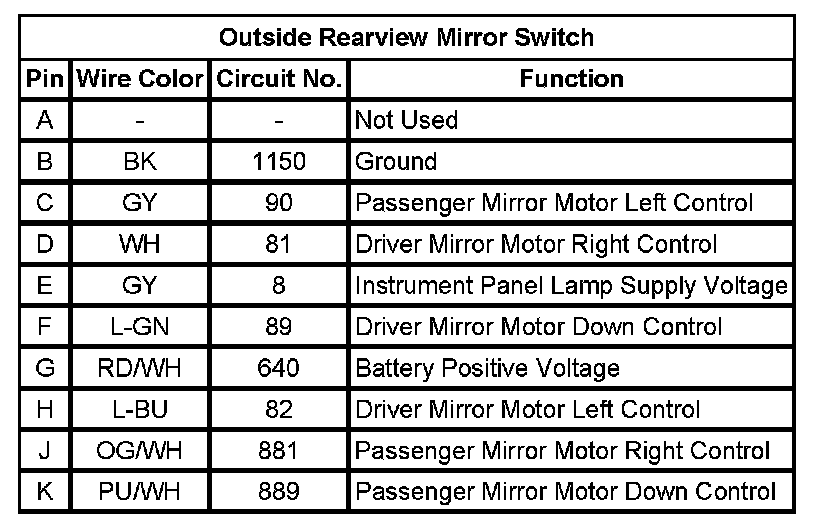

Outside Rearview Mirror Switch
