Window Systems Connector End Views



Window Systems Connector End Views

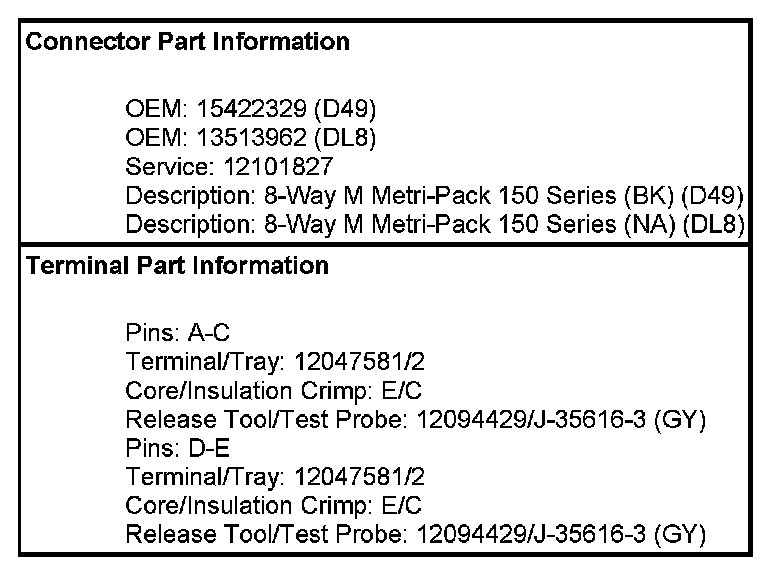

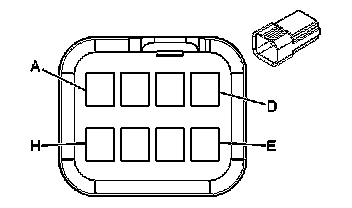

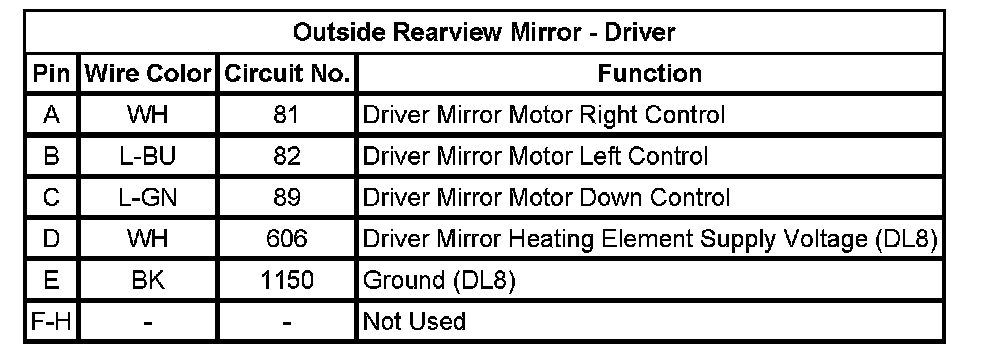

Outside Rearview Mirror - Driver

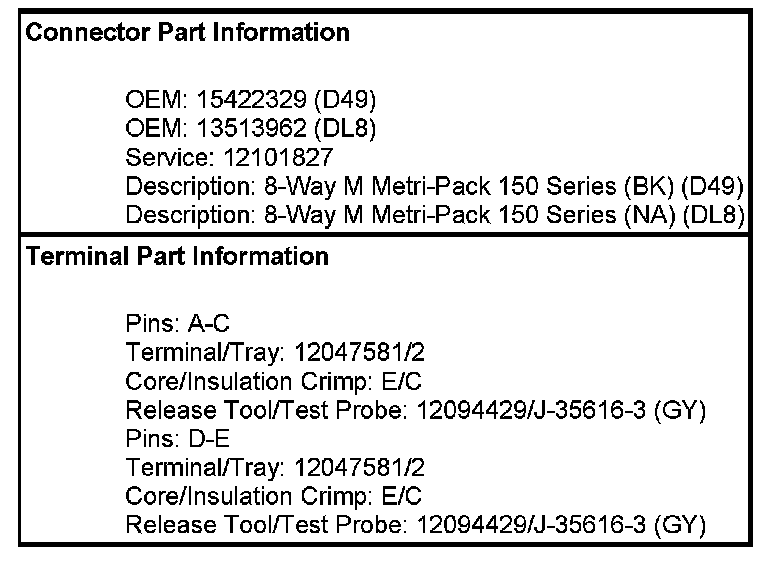

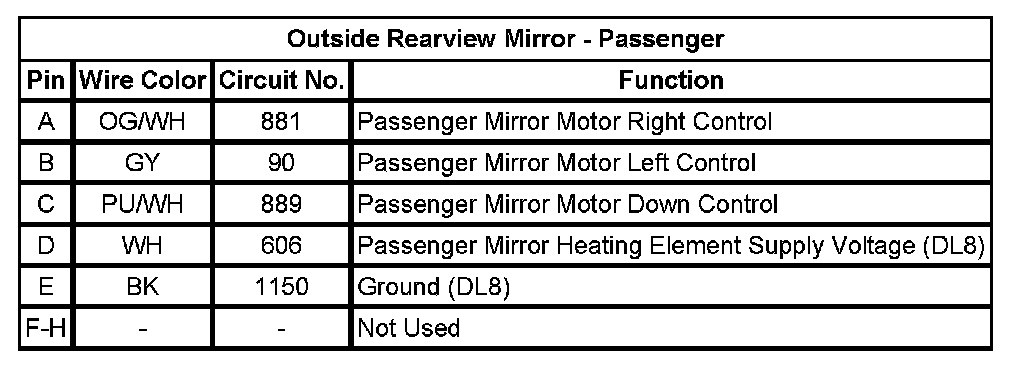

Outside Rearview Mirror - Passenger

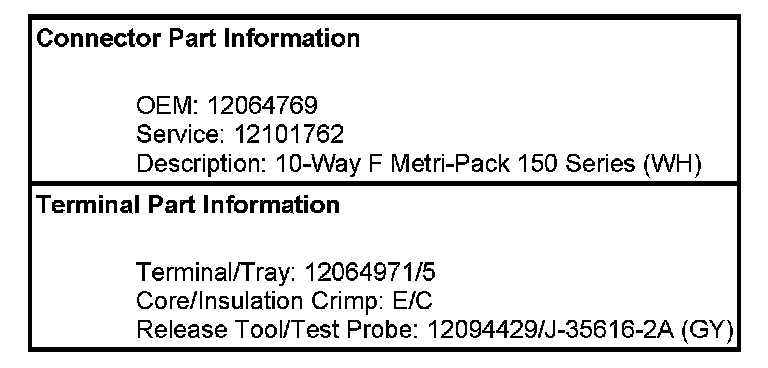

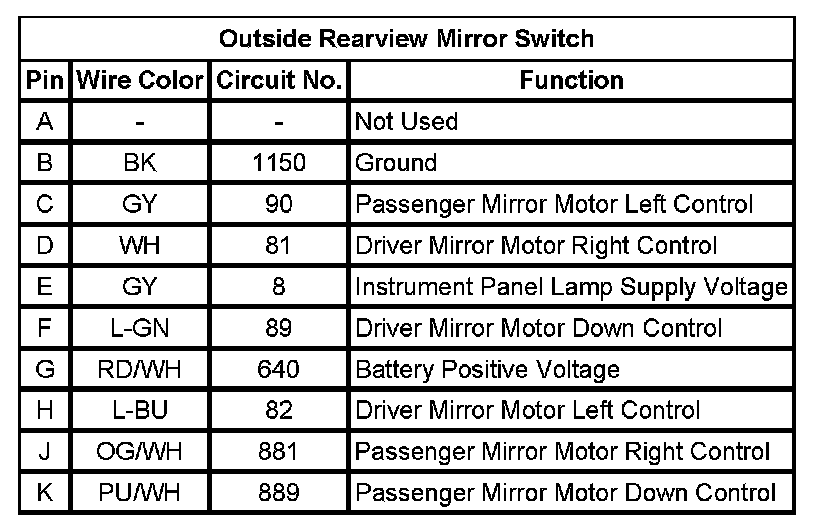

Outside Rearview Mirror Switch
