Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
Oxygen Sensor
Engine Controls Connector End Views

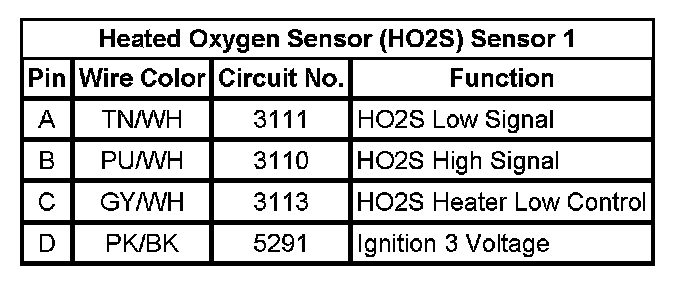

Heated Oxygen Sensor (HO2S) Sensor 1

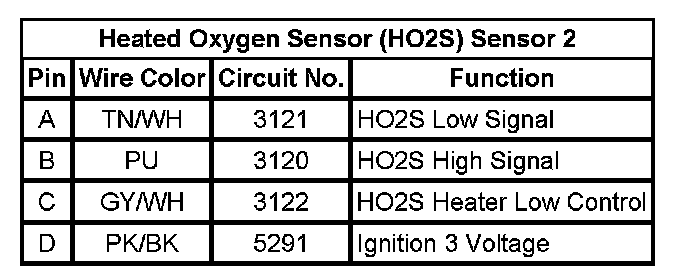

Heated Oxygen Sensor (HO2S) Sensor 2
