Power Seat Motor



Power Seat Connector End Views

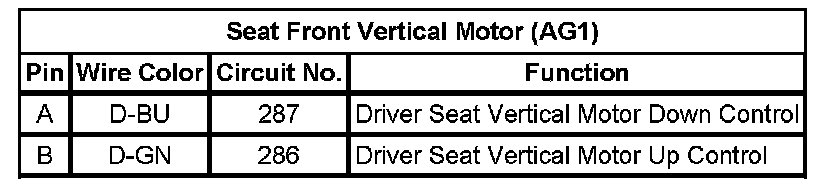

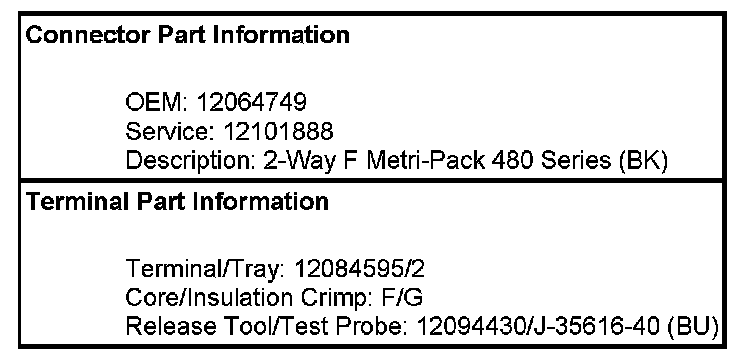

Seat Front Vertical Motor (AG1)

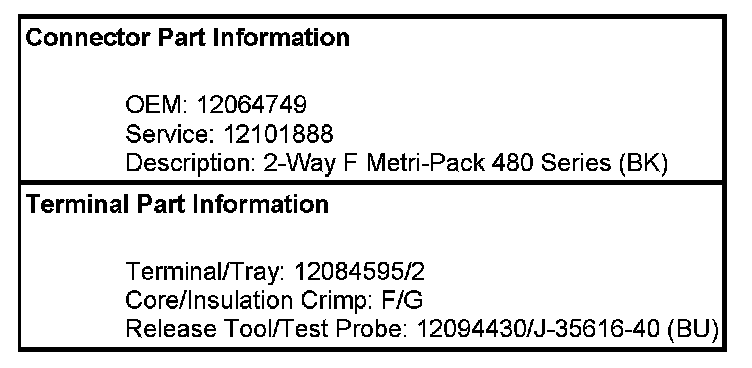

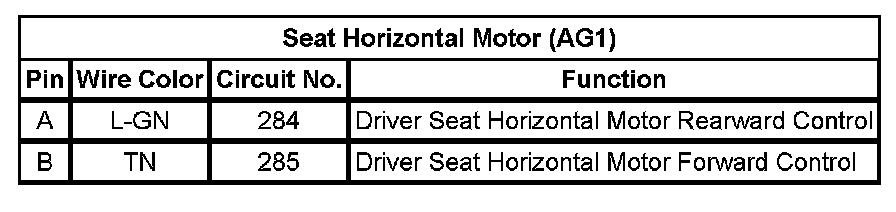

Seat Horizontal Motor (AG1)

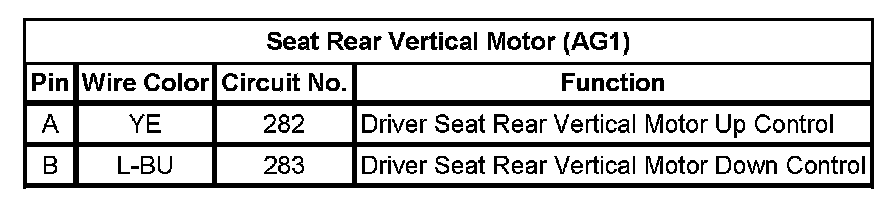

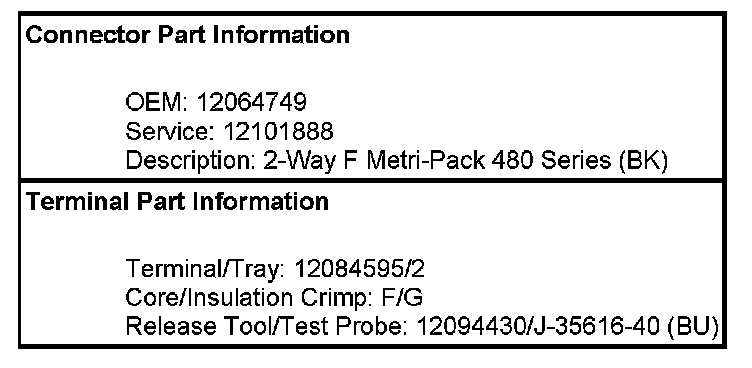

Seat Rear Vertical Motor (AG1)

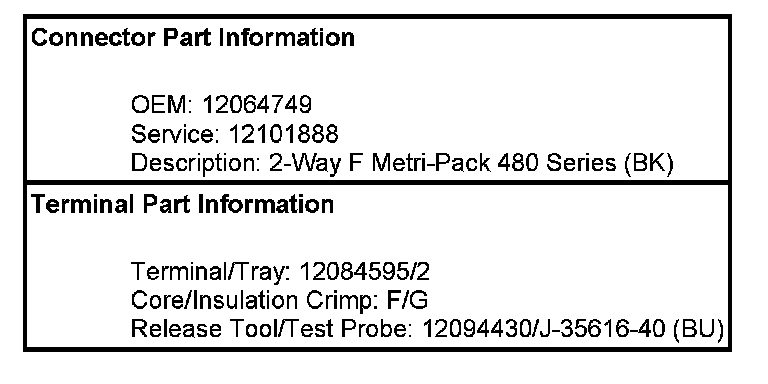

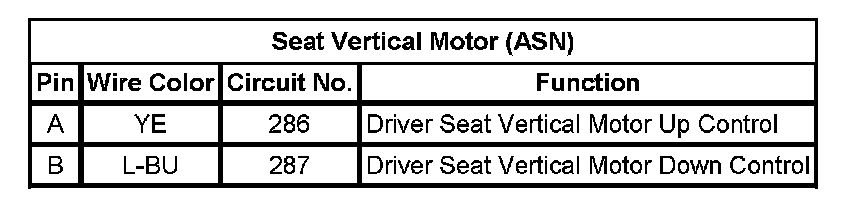

Seat Vertical Motor (ASN)
