Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

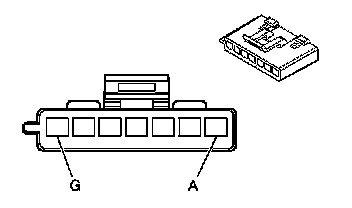

Power Seat Connector End Views

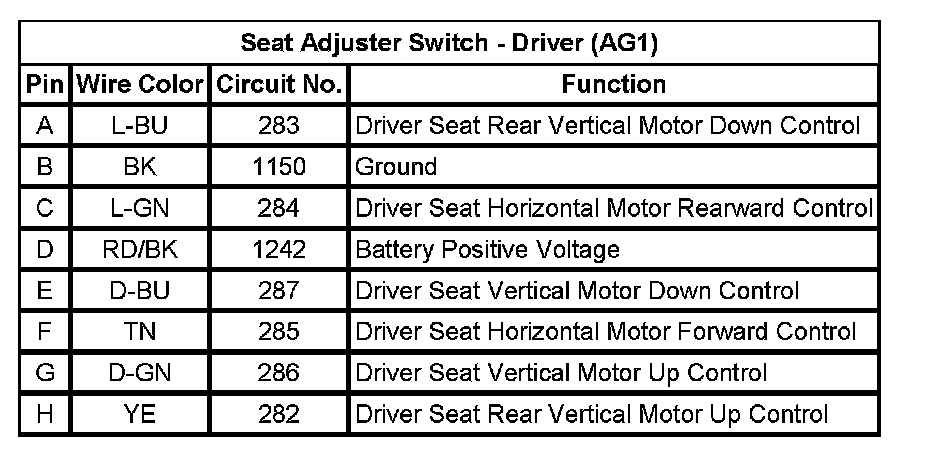

Seat Adjuster Switch - Driver (AG1)

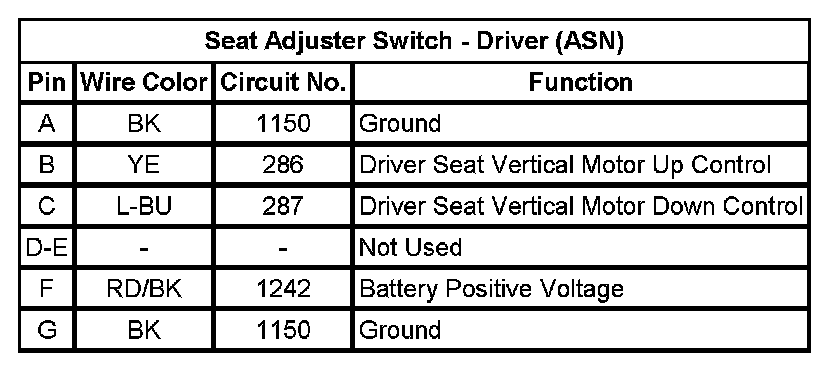

Seat Adjuster Switch - Driver (ASN)
