Trunk / Liftgate Latch
Trunk / Liftgate Latch
Vehicle Access Connector End Views

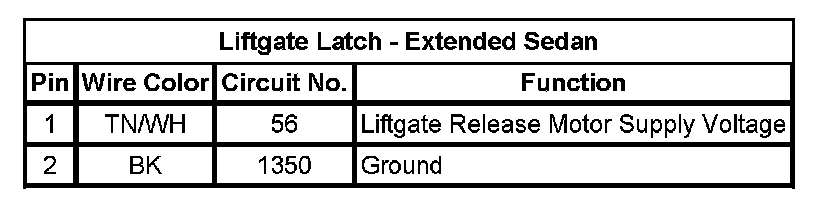

Liftgate Latch - Extended Sedan
Backup Lamp Switch:

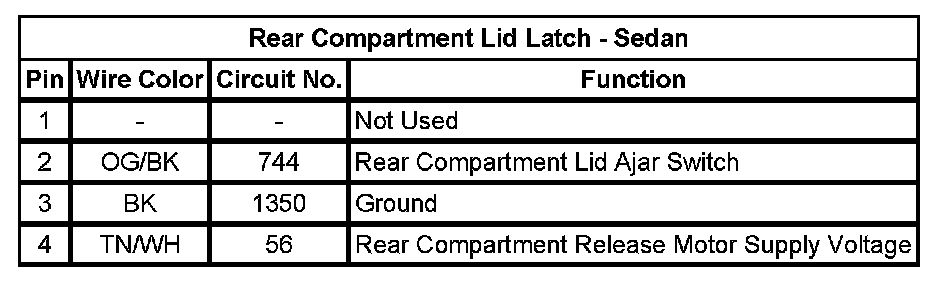

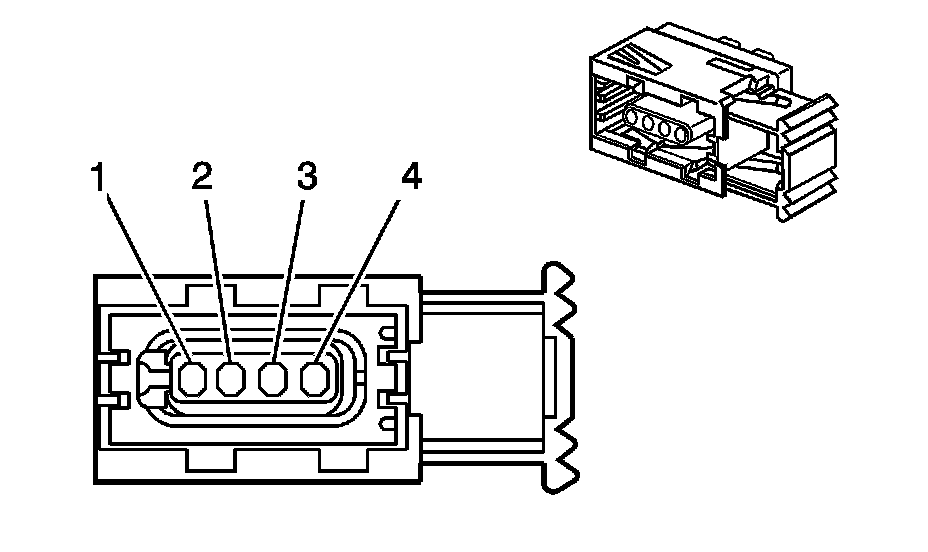

Rear Compartment Lid Latch - Sedan
