Turn Signal Lamp

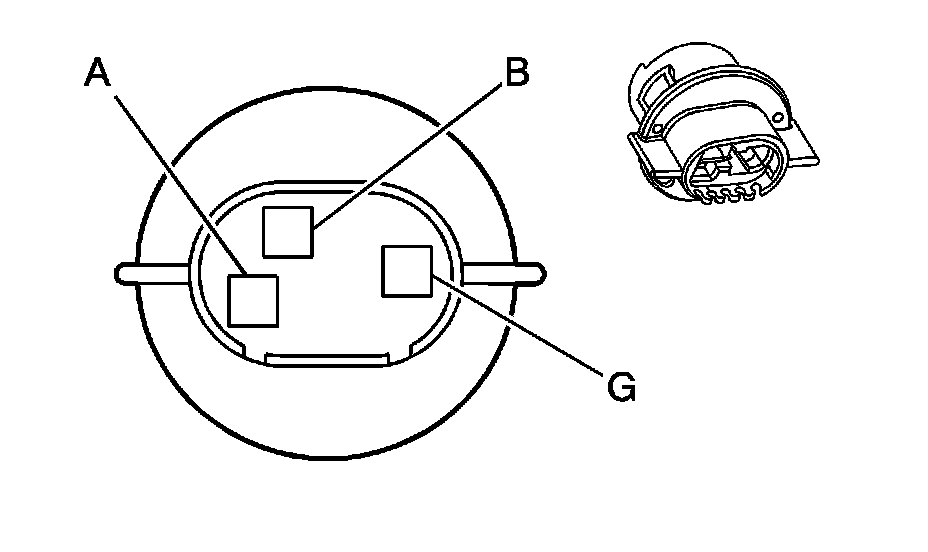

Lighting Systems Connector End Views

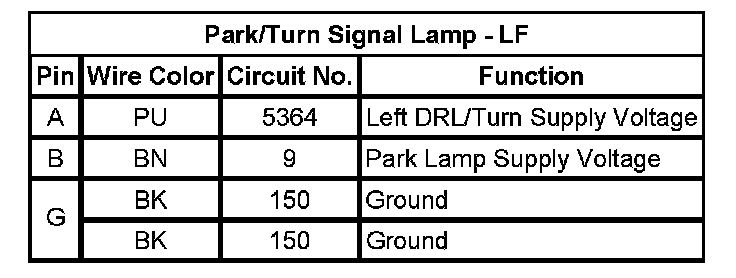

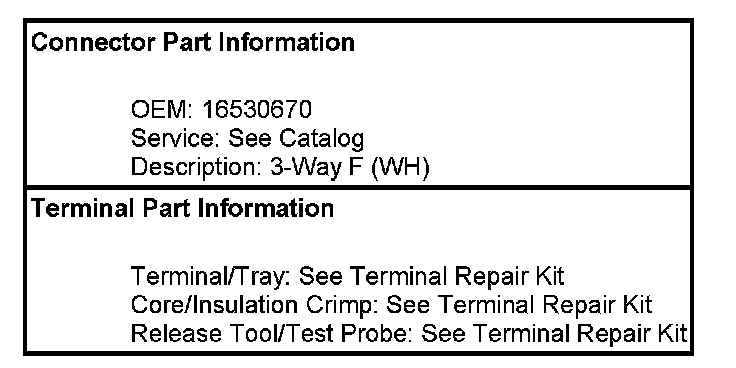

Park/Turn Signal Lamp - LF

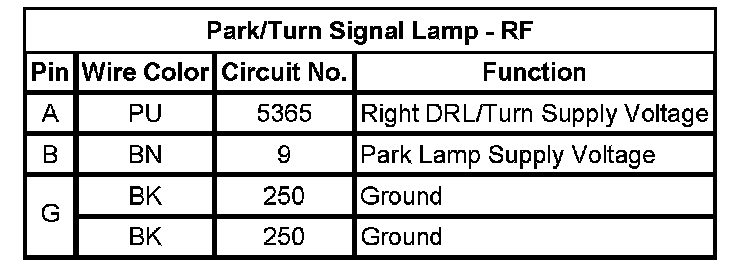

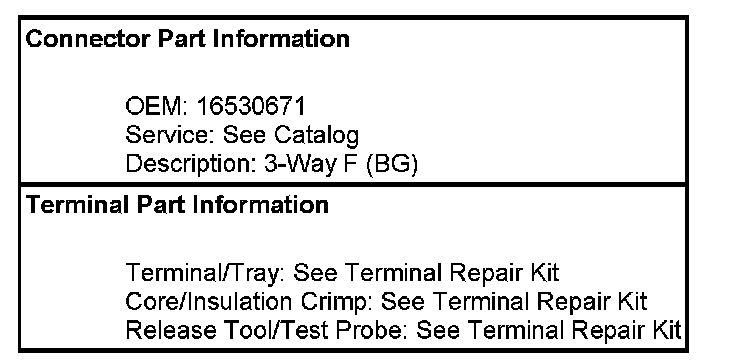

Park/Turn Signal Lamp - RF

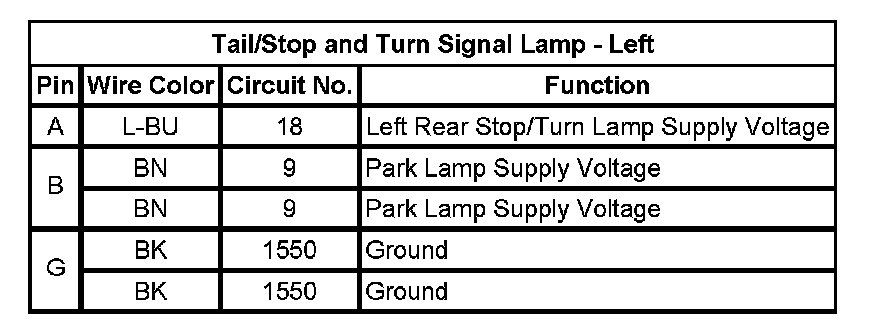

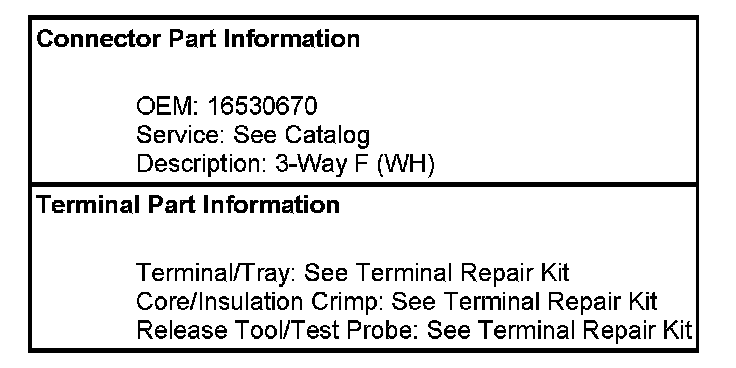

Tail/Stop and Turn Signal Lamp - Left














Tail/Stop and Turn Signal Lamp - Right
