Diesel Data: Automotive Repair
Home >> Chevrolet >> 2008 >> Malibu Classic L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

Washer Fluid Level Switch

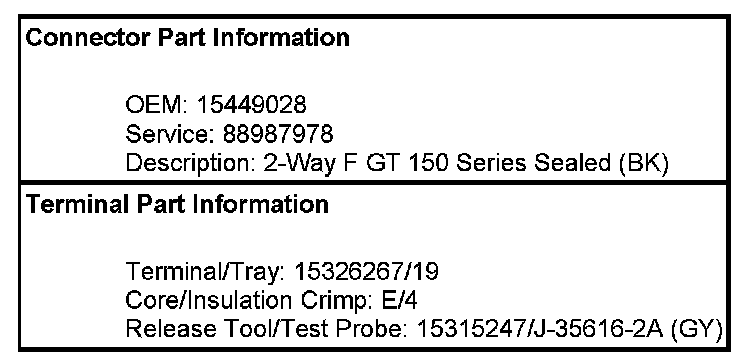

Wiper/Washer Connector End Views

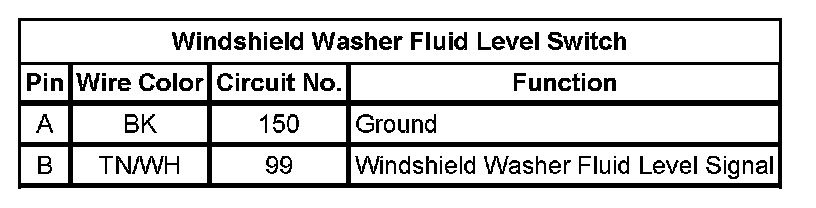

Windshield Washer Fluid Level Switch
