Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Pump
Windshield Washer Pump

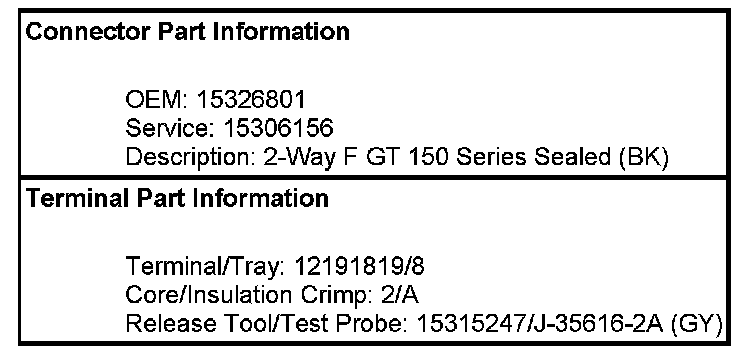

Wiper/Washer Connector End Views

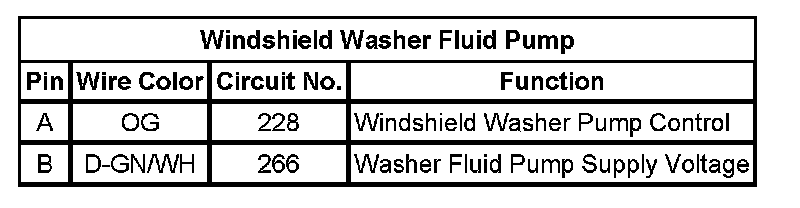

Windshield Washer Fluid Pump
