Windshield Washer Switch
Windshield Washer Switch
Wiper/Washer Connector End Views

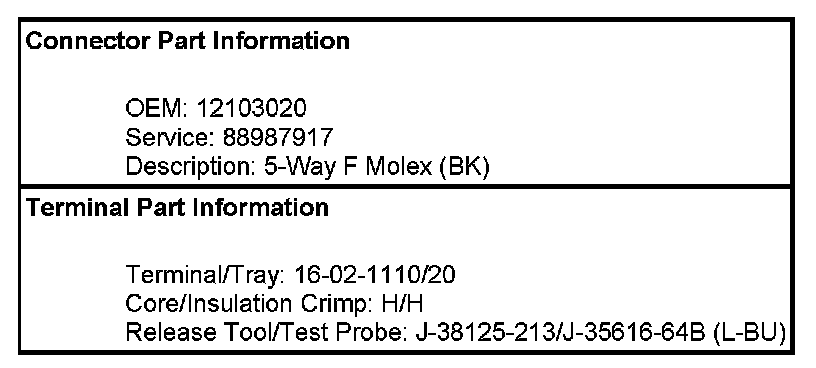

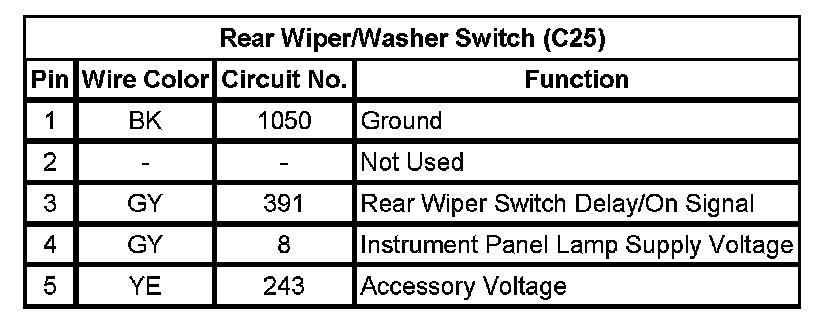

Rear Wiper/Washer Switch (C25)

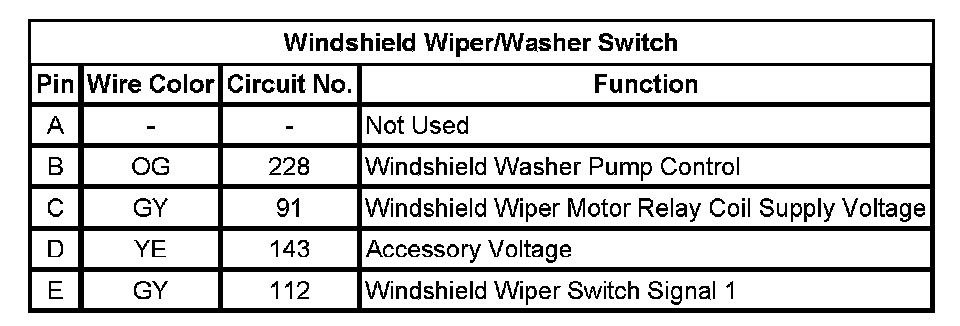

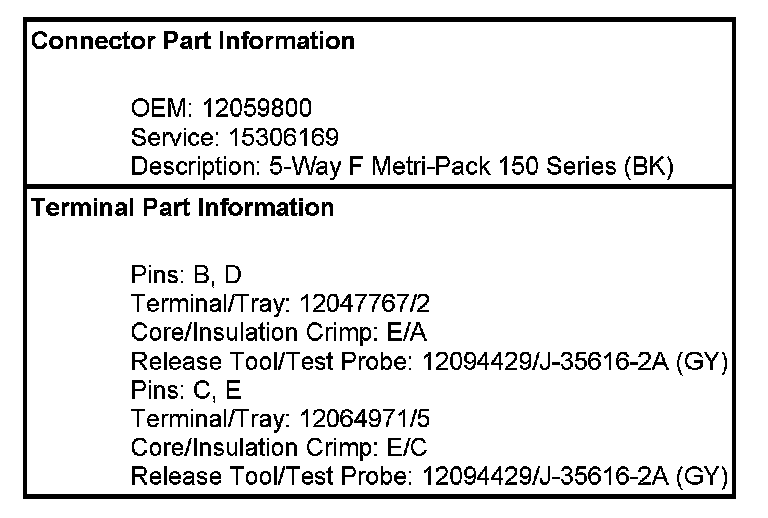

Windshield Wiper/Washer Switch
