Wiper Control Module
Wiper Control Module

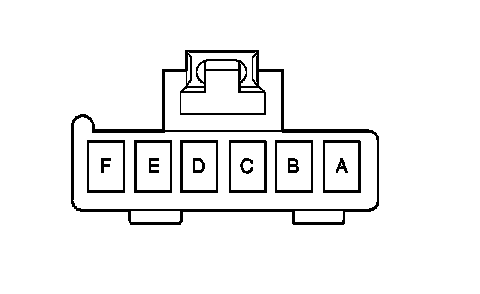

Wiper/Washer Connector End Views

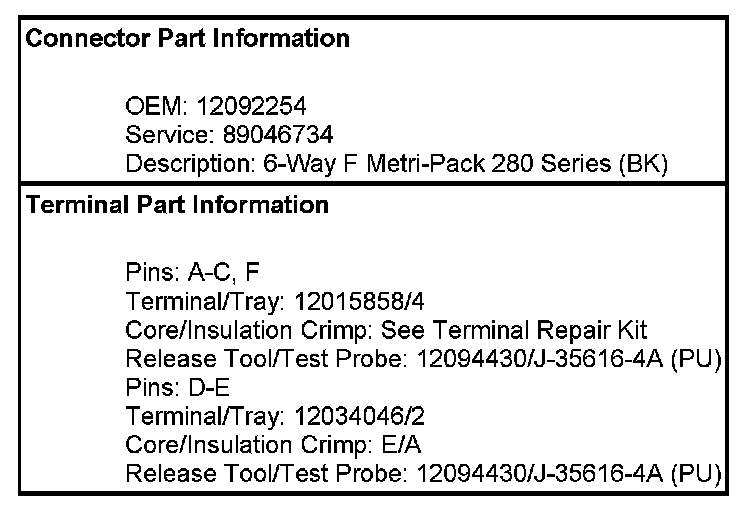

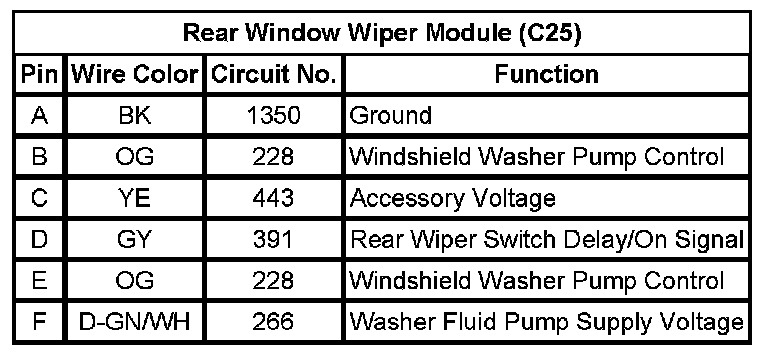

Rear Window Wiper Module (C25)
