Engine Mount Replacement

Engine Mount Replacement

Removal Procedure

1. Use a floor jack and a block of wood to support the powertrain from the oil pan.
2. Remove the air cleaner assembly.

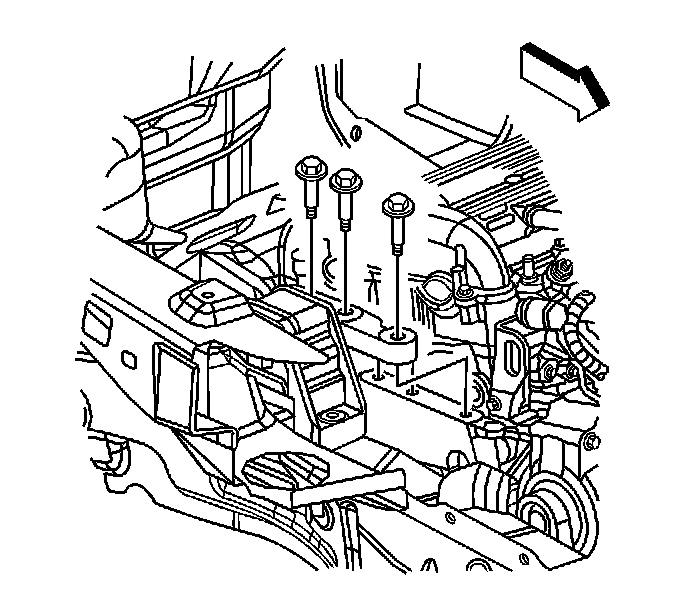

3. Remove the engine mount to bracket bolts.

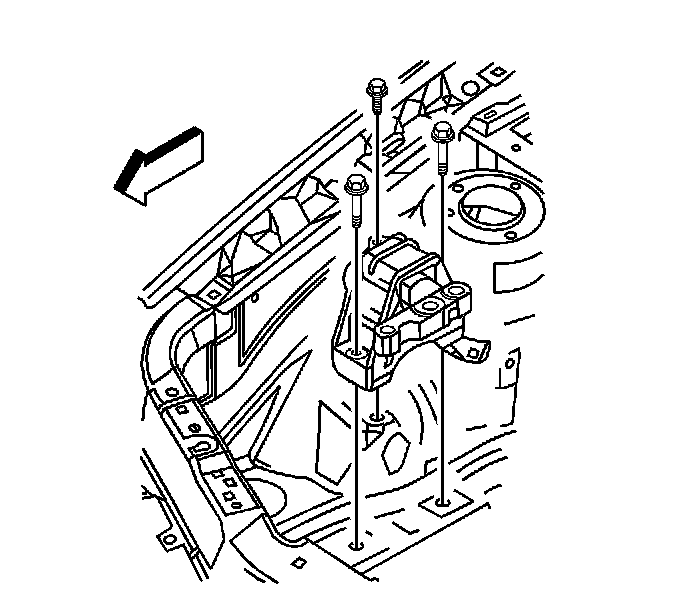

4. Remove the engine mount to body bolts.
5. Remove the engine mount from the vehicle.

Installation Procedure




1. Install the engine mount to the vehicle. Hand tighten the bolts at this time.





Notice: Refer to Fastener Notice.

2. Install the engine mount to engine bracket bolts.
^ Tighten the engine mount to bracket bolts to 50 N.m (37 lb ft).
^ Tighten the engine mount to vehicle bolts to 50 N.m (37 lb ft).
3. Remove the floor jack and block of wood.
4. Install the air cleaner assembly.
