Diesel Data: Automotive Repair

Home >> Chevrolet >> 2008 >> Malibu Classic L4-2.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Air Conditioning (A/C) Diagnostics - Pressure Zone A

Air Conditioning (A/C) Diagnostics - Pressure Zone A

Air Conditioning (A/C) Diagnostics - Pressure Zone A

Step 1 - Step 7:

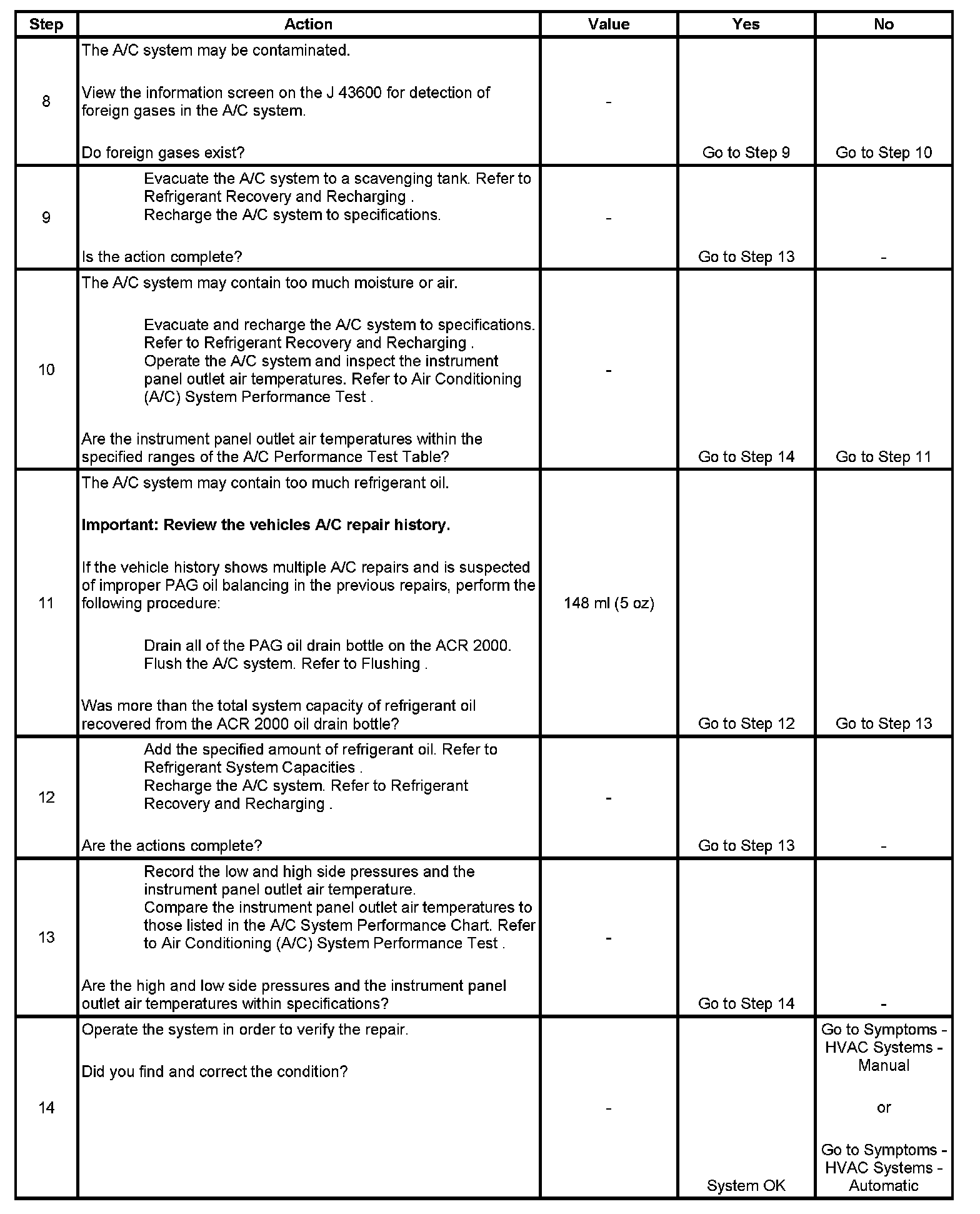

Step 8 - Step 14:
