Lighting Systems Connector End Views

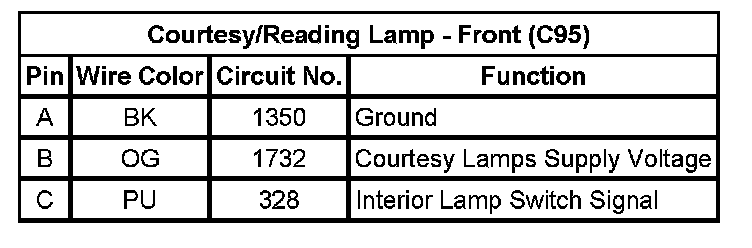

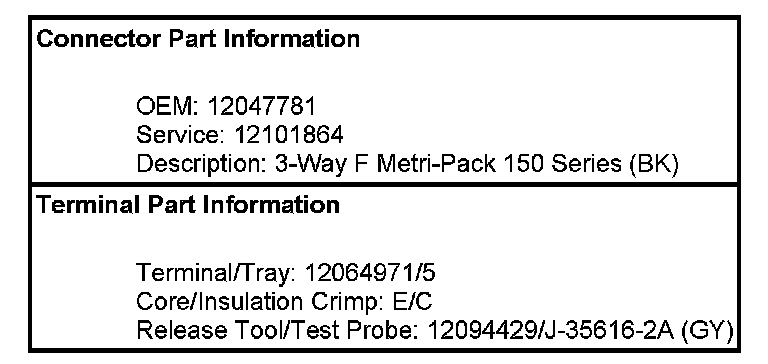

Courtesy/Reading Lamp - Front (C95)

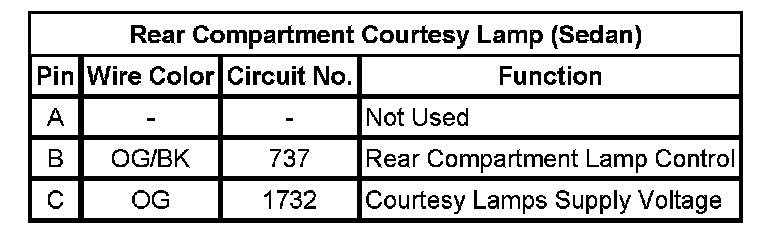

Rear Compartment
Courtesy Lamp
(Sedan)
