Rear Seat Belt Buckle Replacement (Extended Sedan)

Rear Seat Belt Buckle Replacement (Extended Sedan)

Removal Procedure

1. Remove the 60 percent rear seat.

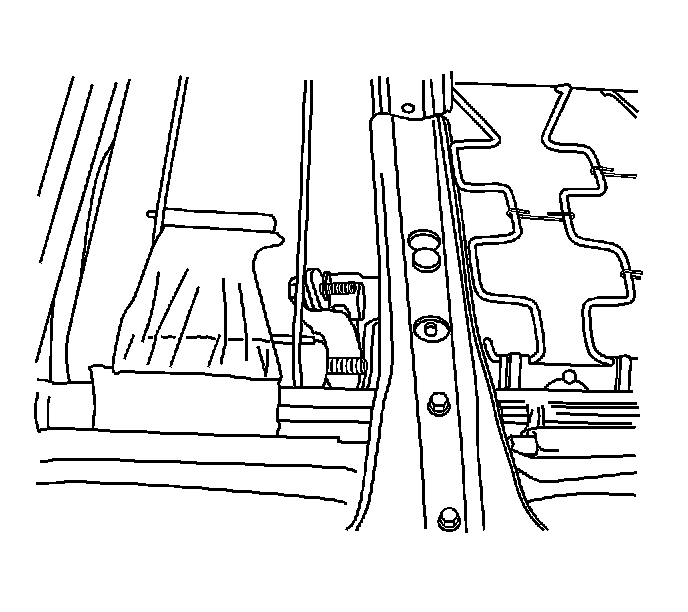

2. Remove the seat belt buckle fastener from under the seat cushion.

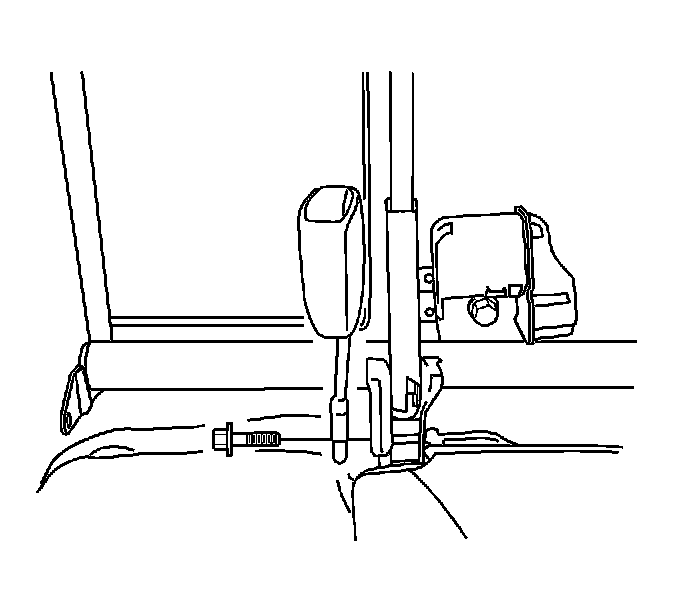

3. Remove the seat belt buckle.

Installation Procedure




1. Install the seat belt buckle.






Notice: Refer to Fastener Notice.

2. Install the fastener to the seat belt buckle.

Tighten the fastener to 35 N.m (25 lb ft).

3. Install the 60 percent rear seat.
