Rear Seat Belt Retractor Replacement (Extended Sedan)

Rear Seat Belt Retractor Replacement (Extended Sedan)

Removal Procedure

1. Remove the rear quarter lower trim panel.

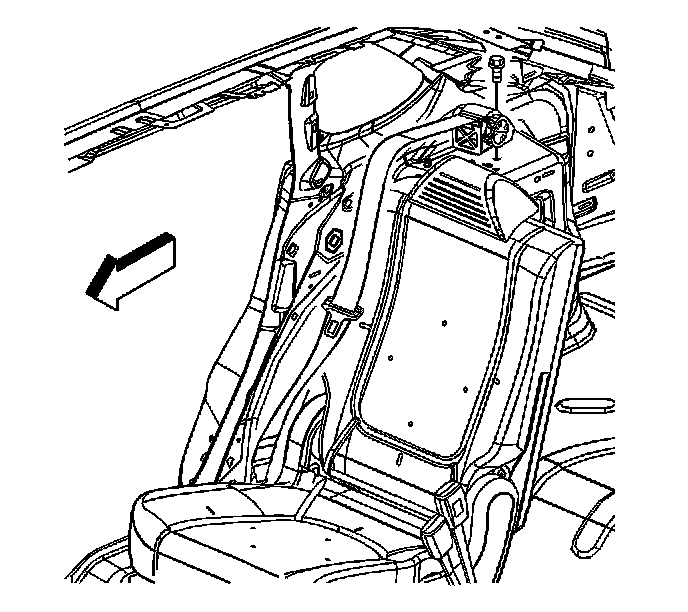

2. Remove the retractor fastener.
3. Remove the retractor from the vehicle.

Installation Procedure




1. Install the seat belt retractor to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the fastener to the seat belt retractor.

Tighten the fastener to 35 N.m (25 lb ft).

3. Install the rear quarter lower trim panel.
