Seat Belt Retractor Replacement - Center Rear (Extended Sedan)

Seat Belt Retractor Replacement - Center Rear (Extended Sedan)

Removal Procedure

1. Remove the seat back cover and pad from the 60 percent side.

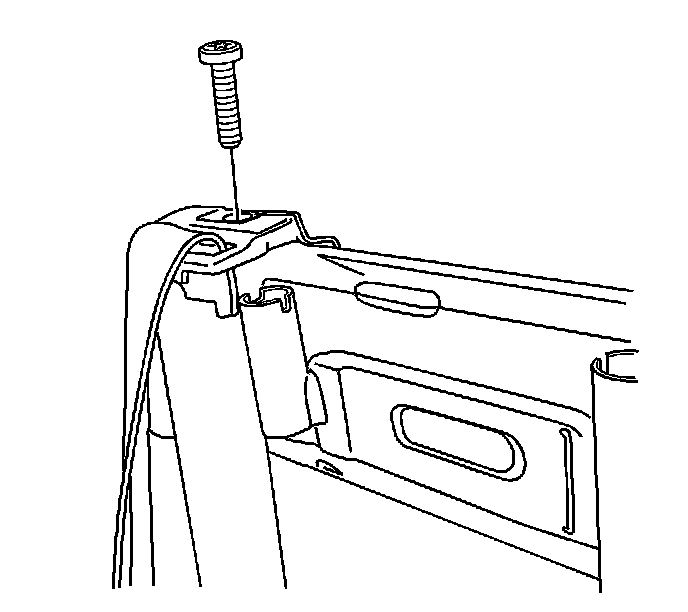

2. Remove the upper seat belt anchor from the seat frame.

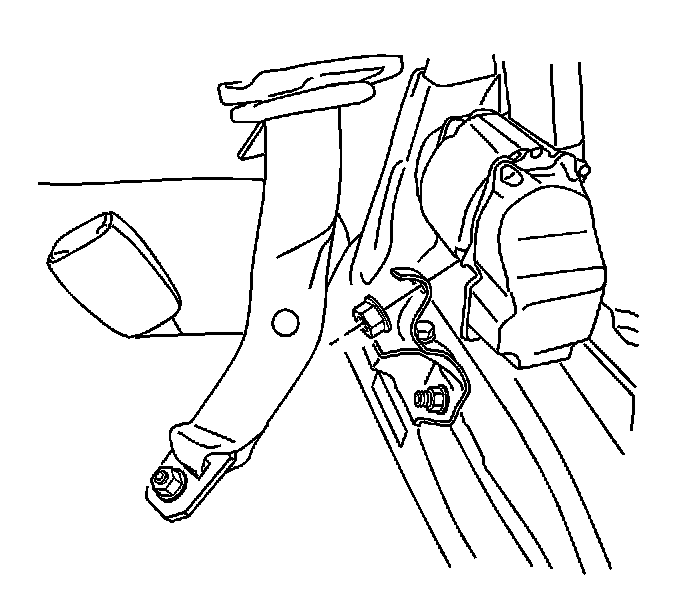

3. Remove the seat belt retractor anchor from the seat frame.
4. Remove the seat belt retractor from the vehicle.

Installation Procedure




1. Install the seat belt retractor to the vehicle.
2. Install the seat belt retractor anchor to the seat frame.




3. Install the upper seat belt anchor to the seat frame.
4. Install the seat back cover and pad to the 60 percent side.
