Discharge Air Temperature Sensor / Switch: Diagrams



HVAC Connector End Views

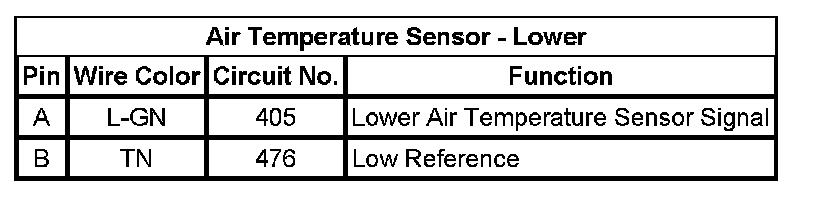

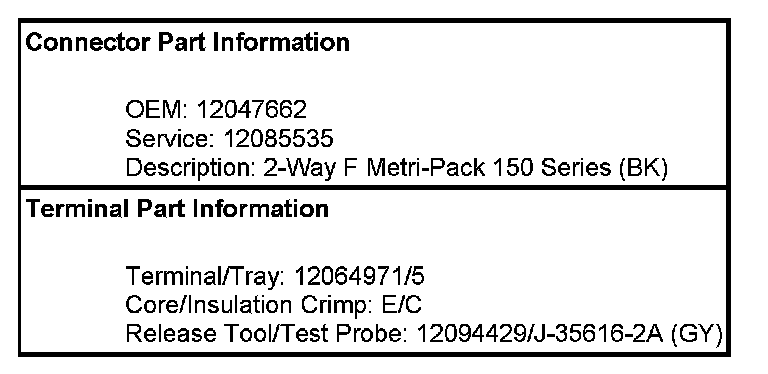

Air Temperature Sensor - Lower

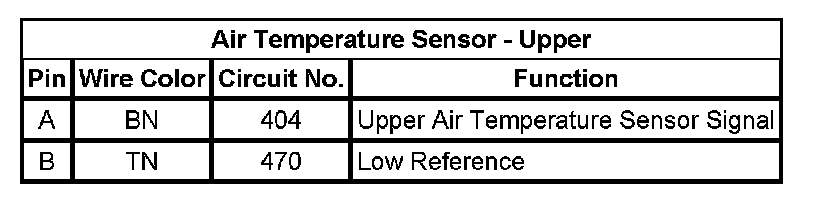

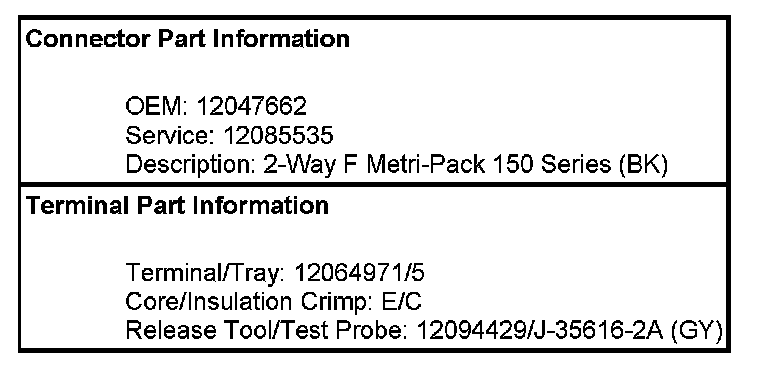

Air Temperature Sensor - Upper
