Coil Spring Insulators Replacement

Coil Spring Insulators Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.




2. Remove the coil spring. Refer to Coil Spring Replacement.

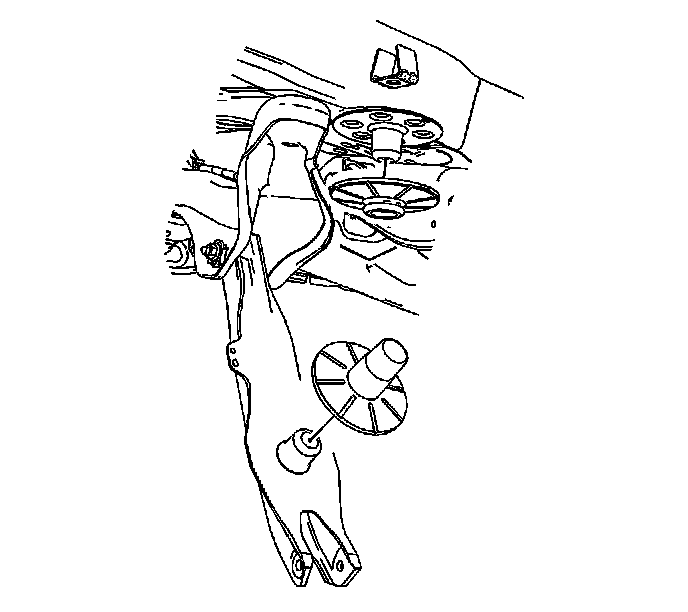

3. Remove the coil spring insulator from the lower control arm and vehicle body.

Installation Procedure




1. Install the coil spring insulators to the lower control arm and vehicle body.
2. Install the coil spring.
