Shock Absorber Replacement (Extended Sedan)

Shock Absorber Replacement (Extended Sedan)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the tire and wheel.
3. Using a suitable jack stand, raise the rear knuckle to remove spring tension.




4. Remove the lower shock bolt.

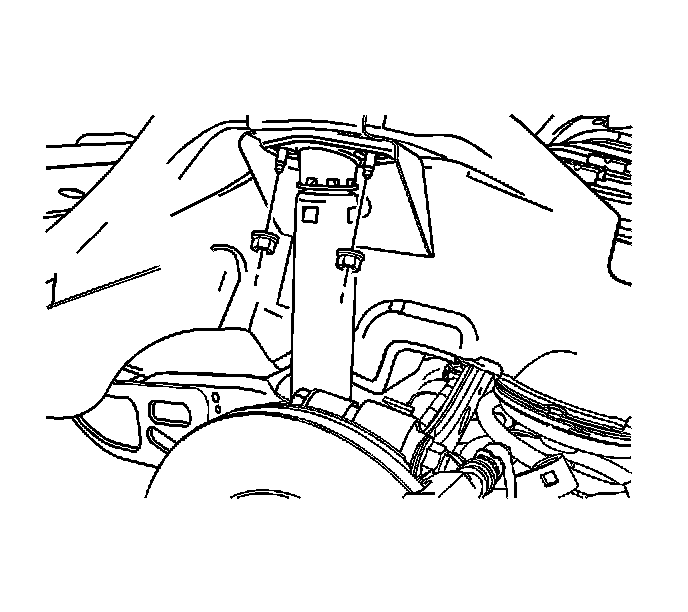

5. Remove the upper shock to body nuts.
6. Remove the shock from the vehicle.

Installation Procedure

1. Place the shock in the vehicle.





Notice: Refer to Fastener Notice.

2. Install the shock absorber to body nuts.

Tighten the nuts to 25 N.m (18 lb ft).




3. Install the shock absorber to knuckle bolt.

Tighten the bolt to 180 N.m (133 lb ft).

4. Remove the jack stand from the rear knuckle.
5. Install the tire and wheel.
6. Lower the vehicle.
