Spacer Plate and Gasket Removal

Spacer Plate and Gasket Removal

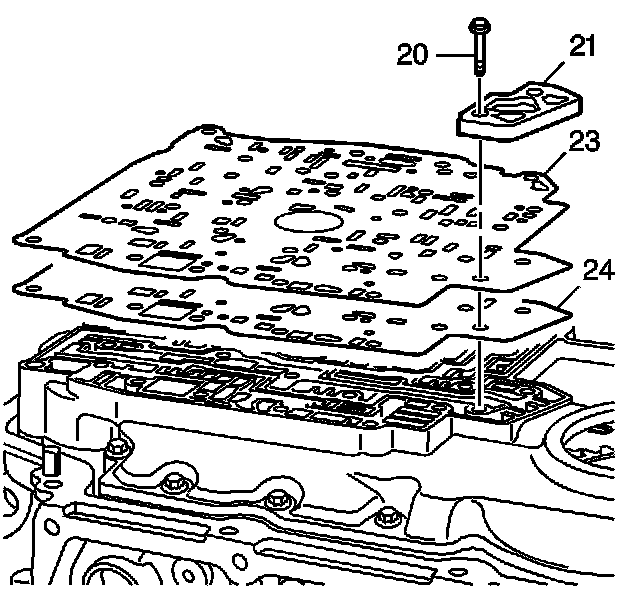

1. Remove the two spacer plate support bolts (20).
2. Remove the spacer plate support (21)

Important: The non-Electronic Range Select Mode 4T40-E/4T45-E has a different spacer plate than the 4T45-E Electronic Range Select Mode transmission.

3. Remove the spacer plate (23).
4. Remove and discard the spacer plate to channel plate gasket (24).
