Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic L4-2.2L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Connector Views
Connector Views
Window Systems Connector End Views

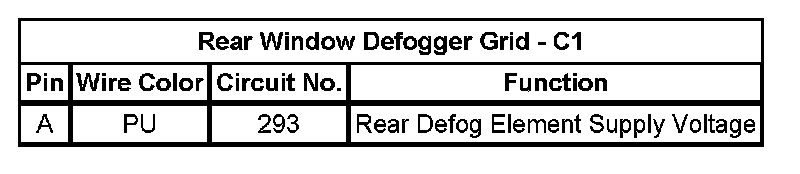

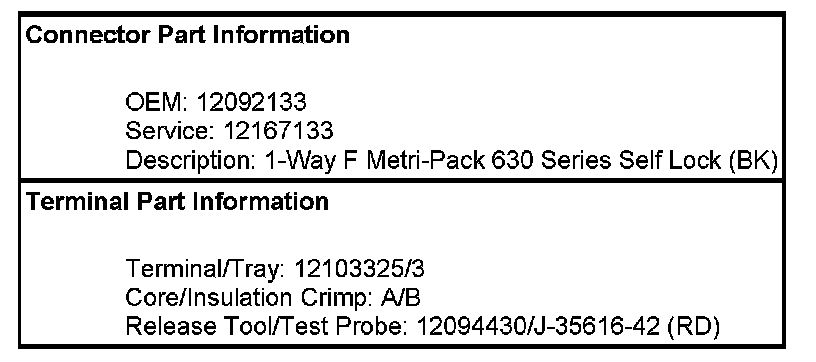

Rear Window Defogger Grid - C1

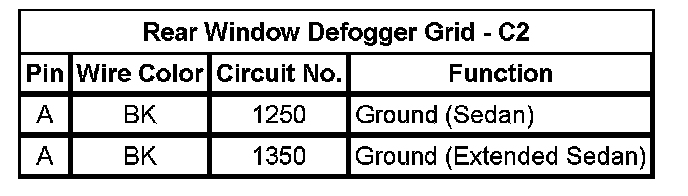

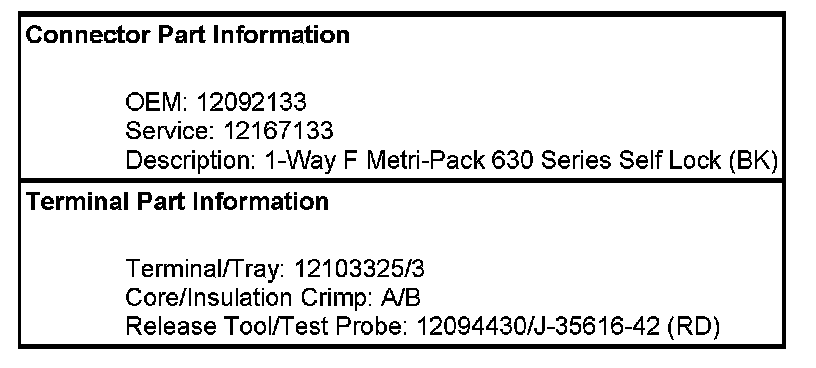

Rear Window Defogger Grid - C2
