Rear Door Window Motor: Service and Repair

Rear Side Door Window Regulator Motor Replacement

Removal Procedure

1. Open the rear door.
2. Remove the rear door trim panel.
3. Remove the water deflector.
4. Disconnect the electrical connector from the rear door window regulator motor.

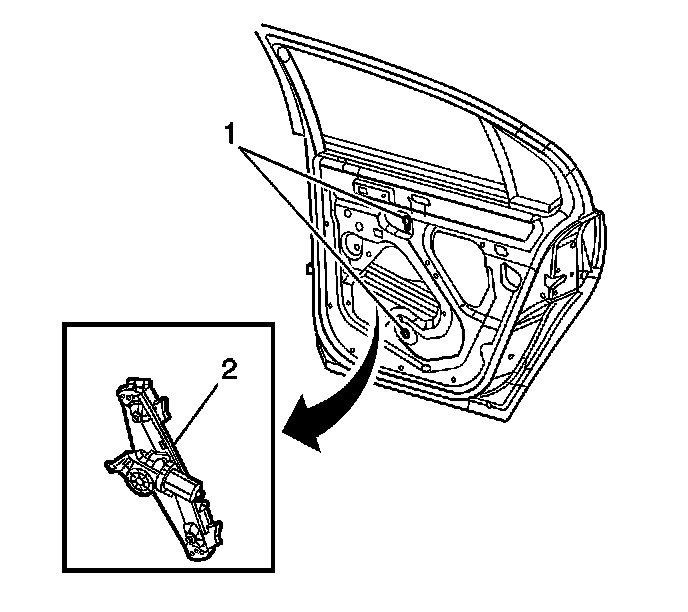

5. Remove the rear door window regulator to door screws (1).
6. Position the rear door window regulator through the access opening to allow removal of the rear door window regulator (2).

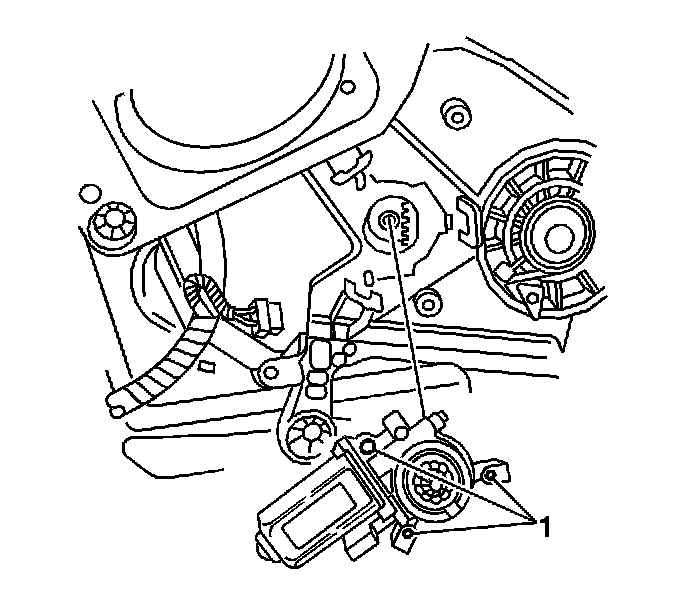

7. Remove the rear door window regulator motor to regulator screws (1).
8. Remove the rear door window regulator motor assembly.

Installation Procedure




1. Align the rear door window regulator motor assembly to the rear door window regulator.

Notice: Refer to Fastener Notice.

2. Install the rear door window regulator motor to regulator screws.

Tighten the rear door window regulator motor to regulator screws to 6 N.m (53 lb in).




3. Position the rear door window regulator motor through the opening in the door.
4. Install the rear door window regulator motor to door screws (1).

Tighten the rear door window regulator motor to door screws to 10 N.m (89 lb in).

5. Connect the electrical connector to the rear door window regulator motor.
6. Install the water deflector.
7. Install the rear door trim panel.
8. Close the rear door.
