Front Upper Speaker Replacement

Front Upper Speaker Replacement

Removal Procedure

1. Remove the upper extension from the door trim panel. Refer to Upper Extension Trim Panel Replacement (Front Door w/Speaker) (Service and Repair)Upper Extension Trim Panel Replacement (Rear Door) (Service and Repair)Upper Extension Trim Panel Replacement (Front Door w/o Speaker) (Service and Repair) .

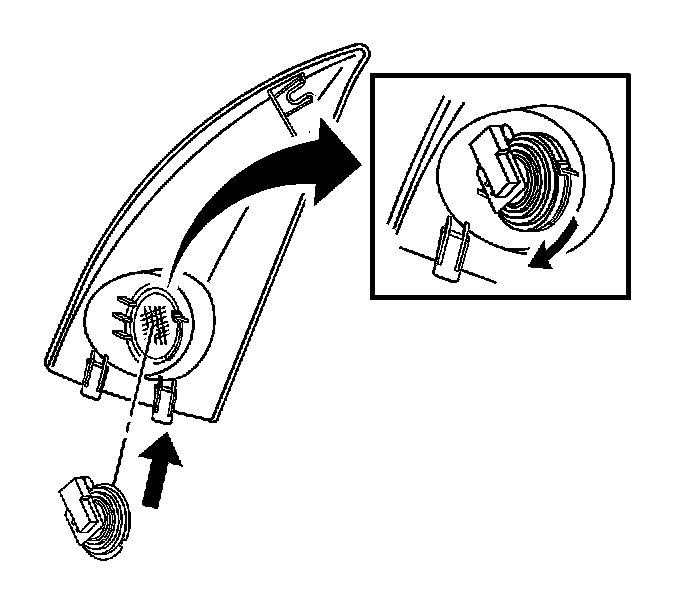

2. Remove the upper speaker from the panel extension.
3. Disconnect the electrical connector.



Installation Procedure





1. Connect the electrical connector to the upper speaker.
2. Install the upper speaker to the trim panel upper extension.
3. Install the upper extension to the door trim panel. Refer to Upper Extension Trim Panel Replacement (Front Door w/Speaker) (Service and Repair)Upper Extension Trim Panel Replacement (Rear Door) (Service and Repair)Upper Extension Trim Panel Replacement (Front Door w/o Speaker) (Service and Repair) .
