Radio Front Side Door Lower Speaker Replacement

Radio Front Side Door Lower Speaker Replacement

Removal Procedure

1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .

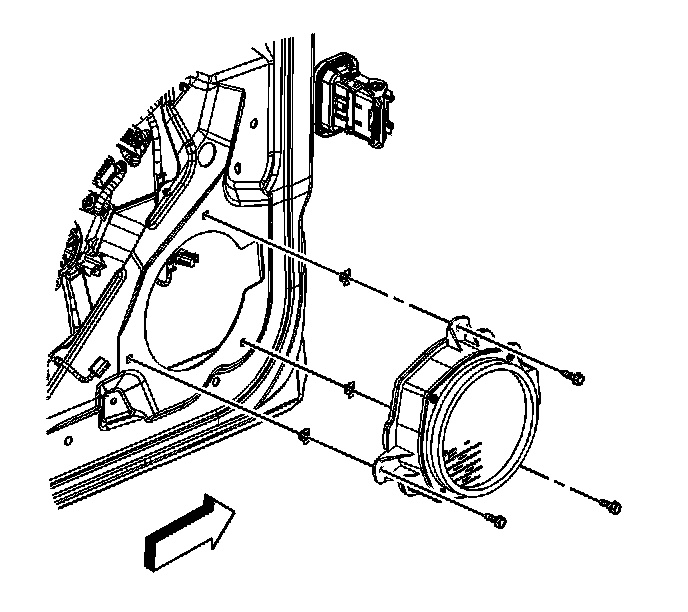

2. Remove the fasteners from the speaker and remove the speaker from the door.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the speaker to the door and secure with the fasteners.

Tighten the fasteners to 2 N.m (18 lb in).

2. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
