Steering Wheel Controls Inoperative (3-Spoke)
Steering Wheel Controls Inoperative (3 - Spoke)
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

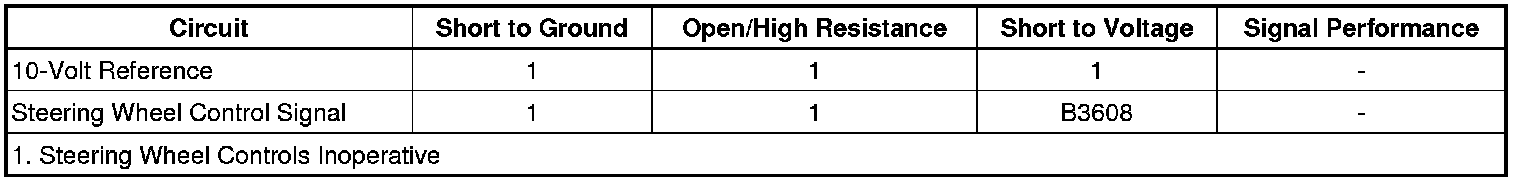

Diagnostic Fault Information
Circuit/System Description
The radio supplies 10 volts to the audio steering wheel control multiple momentary contact switches, and monitors the return signal. Each switch is associated to a set resistance value, when pressed a specific voltage drop occurs through a series of resistors unique to that switch. The radio will perform the desired function, or send a serial data message to another component.
Diagnostic Aids
* This diagnostic is for the audio steering wheel controls.
* Before diagnosis of the steering wheel controls, ensure the primary controls of the associated component are functioning properly.
* Review with the schematic when testing switch resistance values.
* If a single switch function is inoperative, test the suspect switch. Refer to component testing.
Reference Information
Schematic Reference
Steering Wheel Secondary/Configurable Control Schematics (Steering Wheel Secondary/Configurable Control Schematics)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
Steering Wheel Controls Description and Operation (Steering Wheel Controls Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Testing
Caution: Refer to SIR Caution (SIR Caution) .
Important: It is recommended that Component Testing is performed before Circuit Testing when diagnosing steering wheel controls.
1. Ignition OFF, disconnect the harness connector at the right steering wheel control switch.
2. Ignition ON, Radio ON, test for 9.2-10 volts between the 10-volt reference circuit terminal 2 and ground.
• If less than the specified range, test the circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the radio.
• If greater than the specified range, test the circuit for a short to voltage. If the circuit tests normal, replace the radio.
3. Test for 9.2-10 volts between the 10-volt reference circuit terminal 2 and the signal circuit terminal 4.
• If less than the specified range, test the signal circuit for an open/high resistance. If the circuit tests normal, replace the radio.
• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the radio.
4. Disconnect the X1 harness connector at the radio.
5. Test for infinite resistance between the signal circuit terminal A9 and ground.
• If not the specified value, test the signal circuit for short to ground.
6. If all circuits test normal, test or replace the steering wheel control switch.
Component Testing
Caution: Refer to SIR Caution (SIR Caution) .
1. Ignition OFF, disconnect the harness connector at the right steering wheel control switch.
2. Test for infinite resistance between the signal circuit terminal 4 and the 10-volt reference terminal 2 with the switch in the open position.
• If not the specified value, replace the right steering wheel control switch.
3. Test for less than 3,200 ohms between the signal circuit terminal 4 and the 10-volt reference terminal 2 with the switch in the closed position.
• If greater than the specified value, replace the right steering wheel control switch.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Steering Wheel Control Switch Assembly Replacement (SS) (Steering Wheel Control Switch Assembly Replacement (SS))Steering Wheel Control Switch Assembly Replacement (Non SS) (Steering Wheel Control Switch Assembly Replacement (Non SS))
* Control Module References (Programming and Relearning) for radio replacement, setup, and programming
