Rear Bumper Fascia Center Support Replacement

Rear Bumper Fascia Center Support Replacement


Removal Procedure





1.Remove the rear fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .

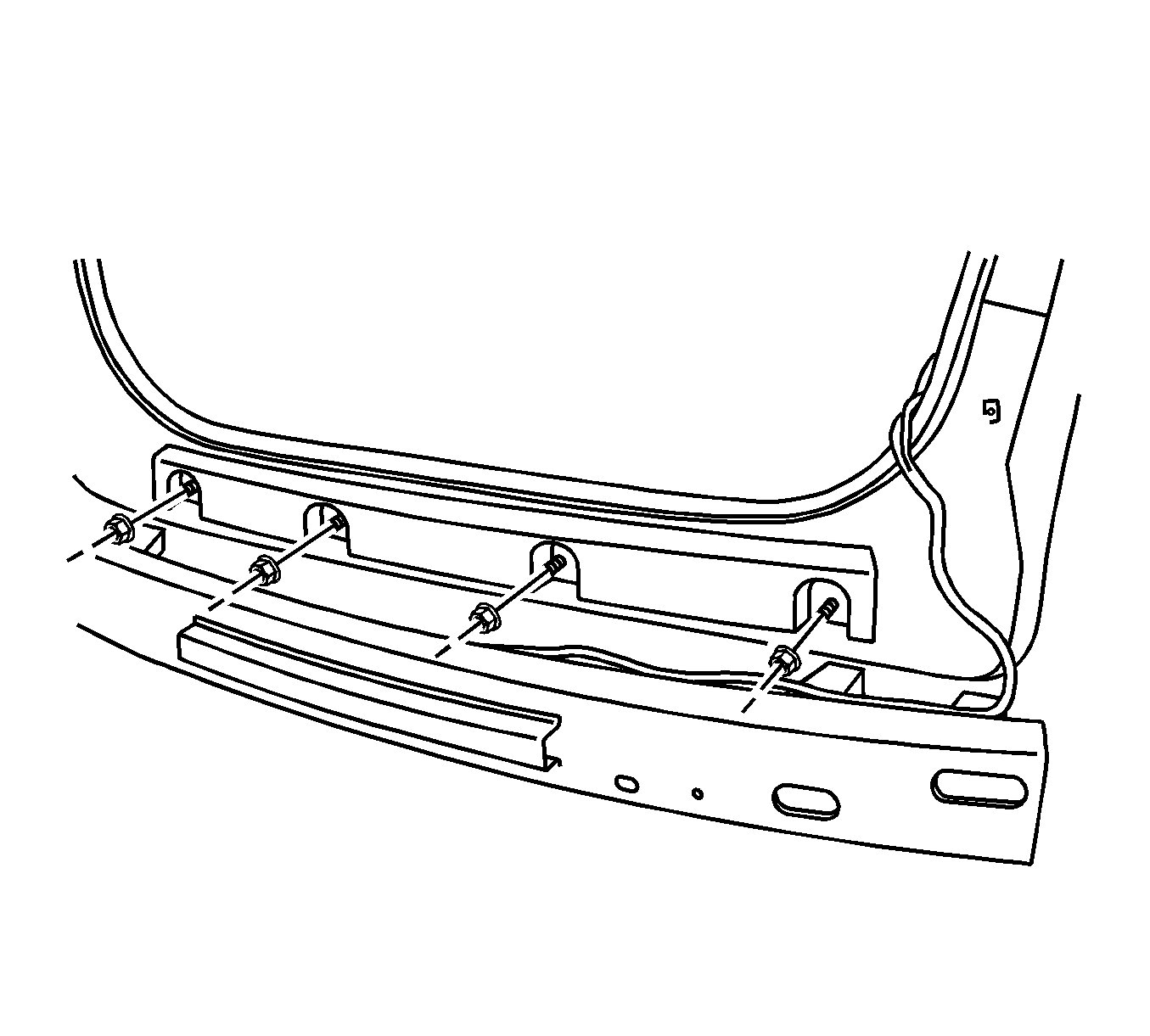

2.Remove the nuts from the rear fascia center support.

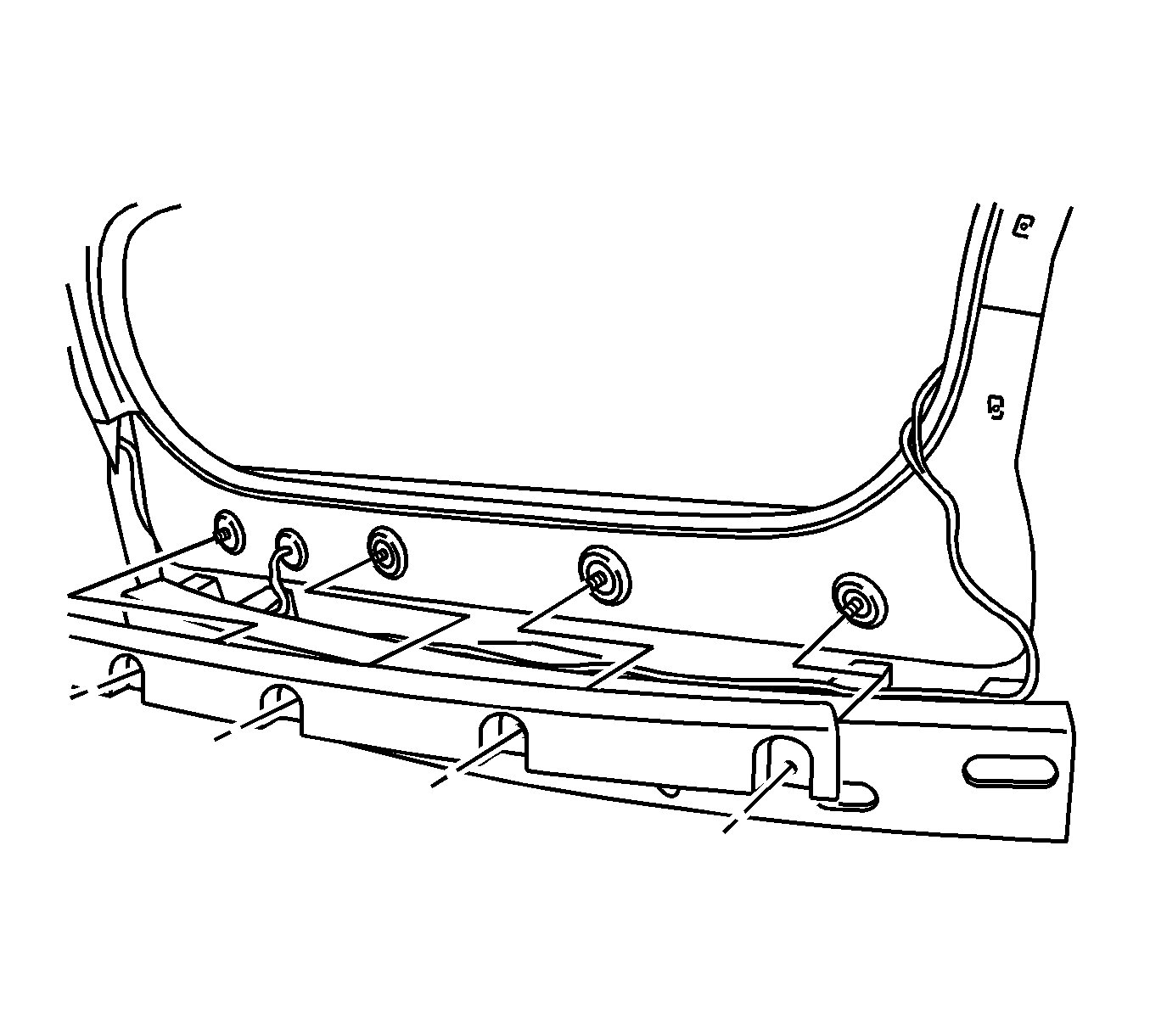

3.Remove the rear fascia center support from the rear body panel.

Installation Procedure





1.Position the rear fascia center support to the rear body panel studs.





Notice:Refer to Fastener Notice .

2.Install the nuts to the studs.

TightenTighten the nuts to 10 N �m (89 lb in).

3.Install the rear fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .
