Rear Bumper Fascia Outer Support Replacement

Rear Bumper Fascia Outer Support Replacement


Removal Procedure

1.Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .

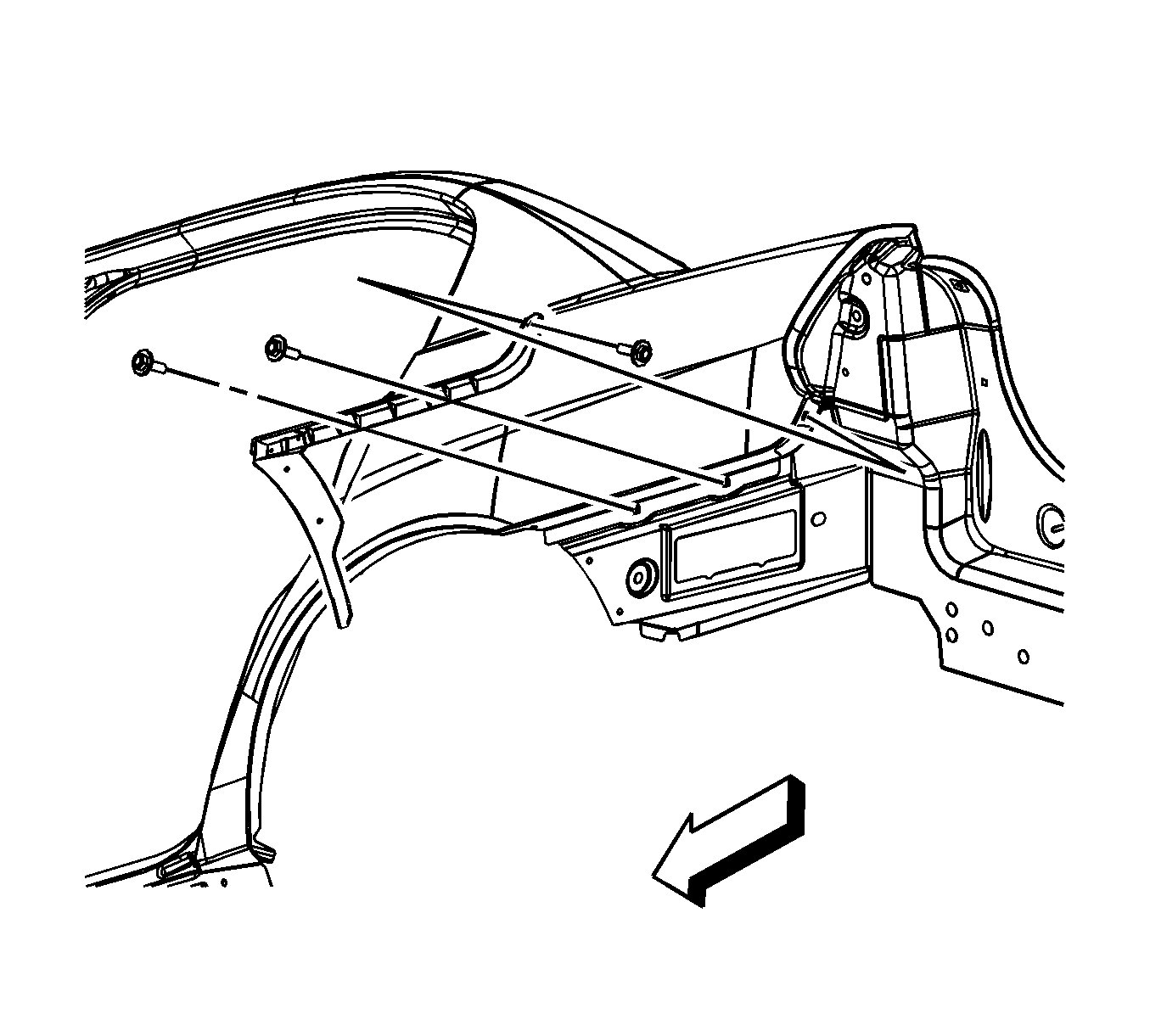

2.Pull back the rear wheelhouse liner. Remove the bolts from he quarter panel to the rear fascia outer support.

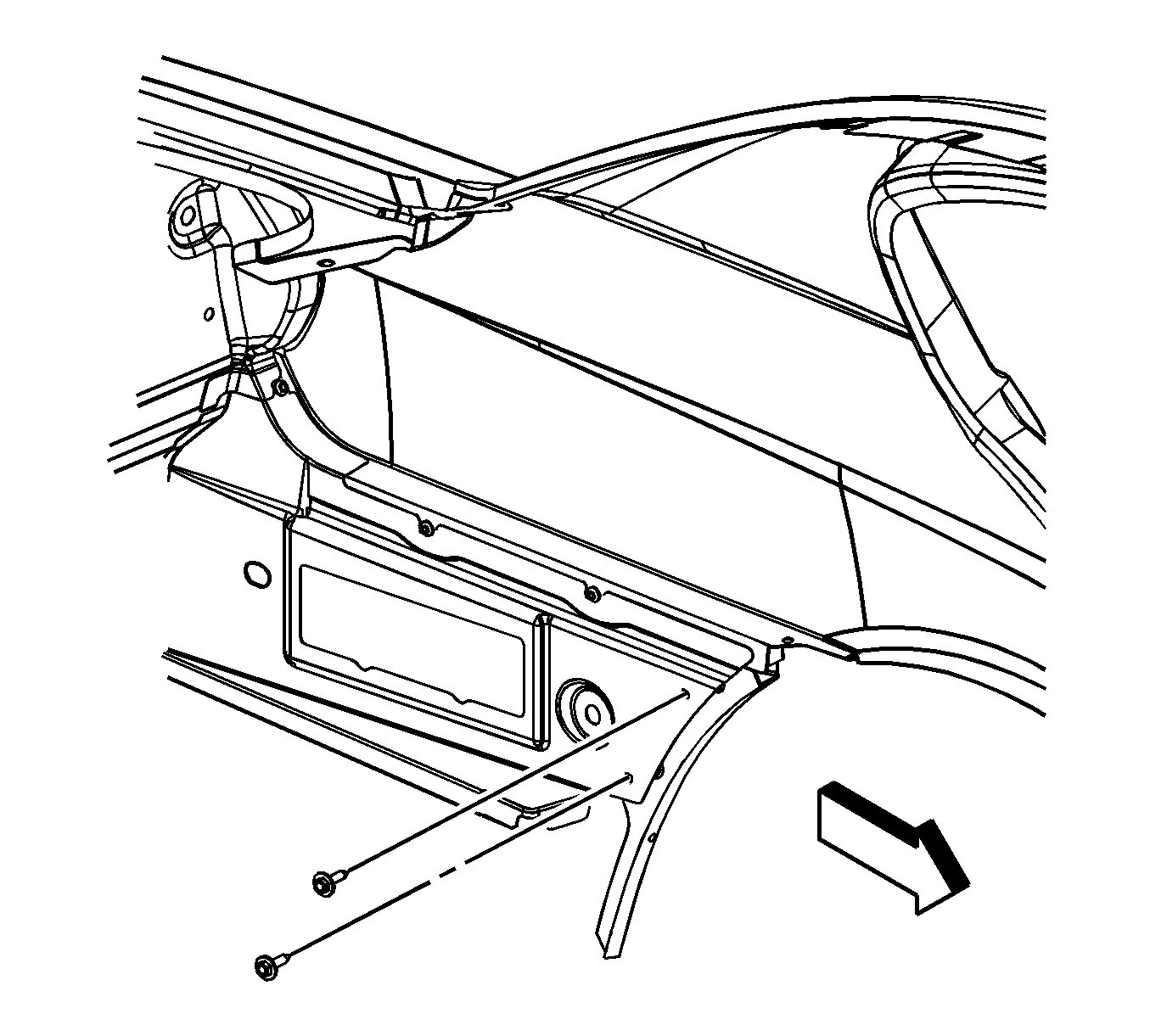

3.From the outside of the vehicle, remove the bolts from the outer support to the quarter panel.

4.Remove the outer support.

Installation Procedure





1.Position the outer support to the quarter panel.

Notice:Refer to Fastener Notice .

2.Install the bolts to the outer support to the quarter panel.

TightenTighten the bolts to 10 N �m (89 lb in).





3.Pull back the rear wheelhouse liner. Install the bolts to the quarter panel to the outer support.

TightenTighten the bolts to 10 N �m (89 lb in).

4.Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .
