Fuel Door: Service and Repair

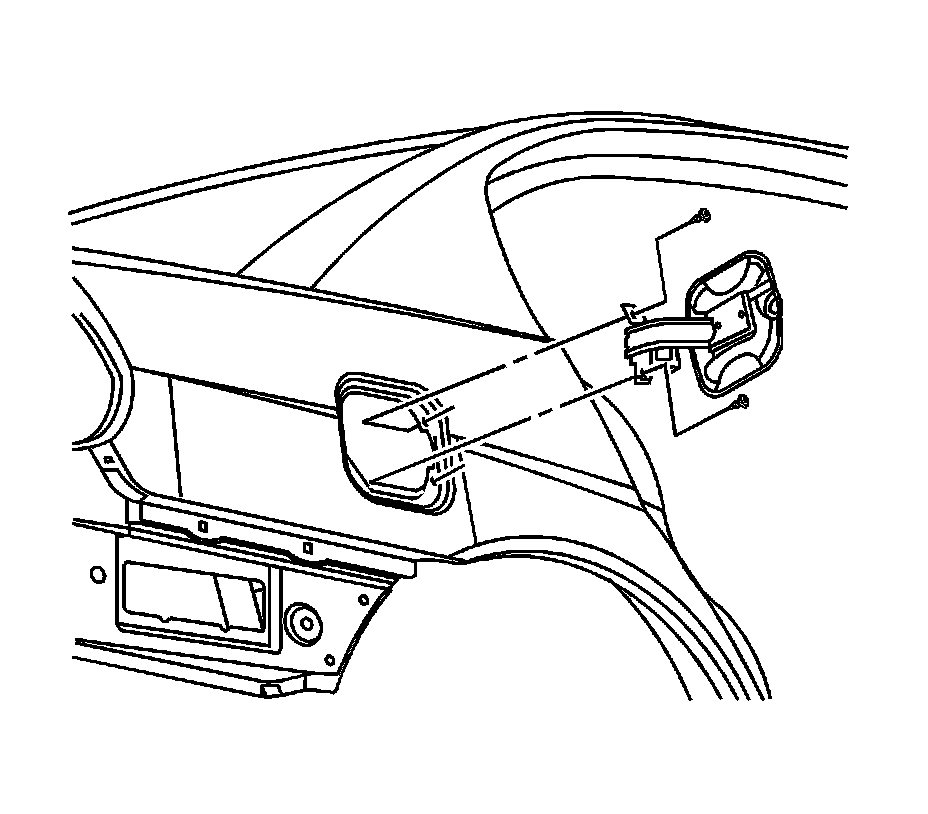

Fuel Tank Filler Door Replacement

Removal Procedure





1. Remove the fuel filler pocket. Refer to Fuel Tank Filler Pipe Housing Replacement (Service and Repair) .
2. Drill out the fuel filler door rivets.
3. Remove the fuel filler door.



Installation Procedure





1. Position the fuel tank filler door.

Notice: Refer to Fastener Notice .

2. Install the rivets to the filler door.
3. Install the fuel filler pocket. Refer to Fuel Tank Filler Pipe Housing Replacement (Service and Repair) .
